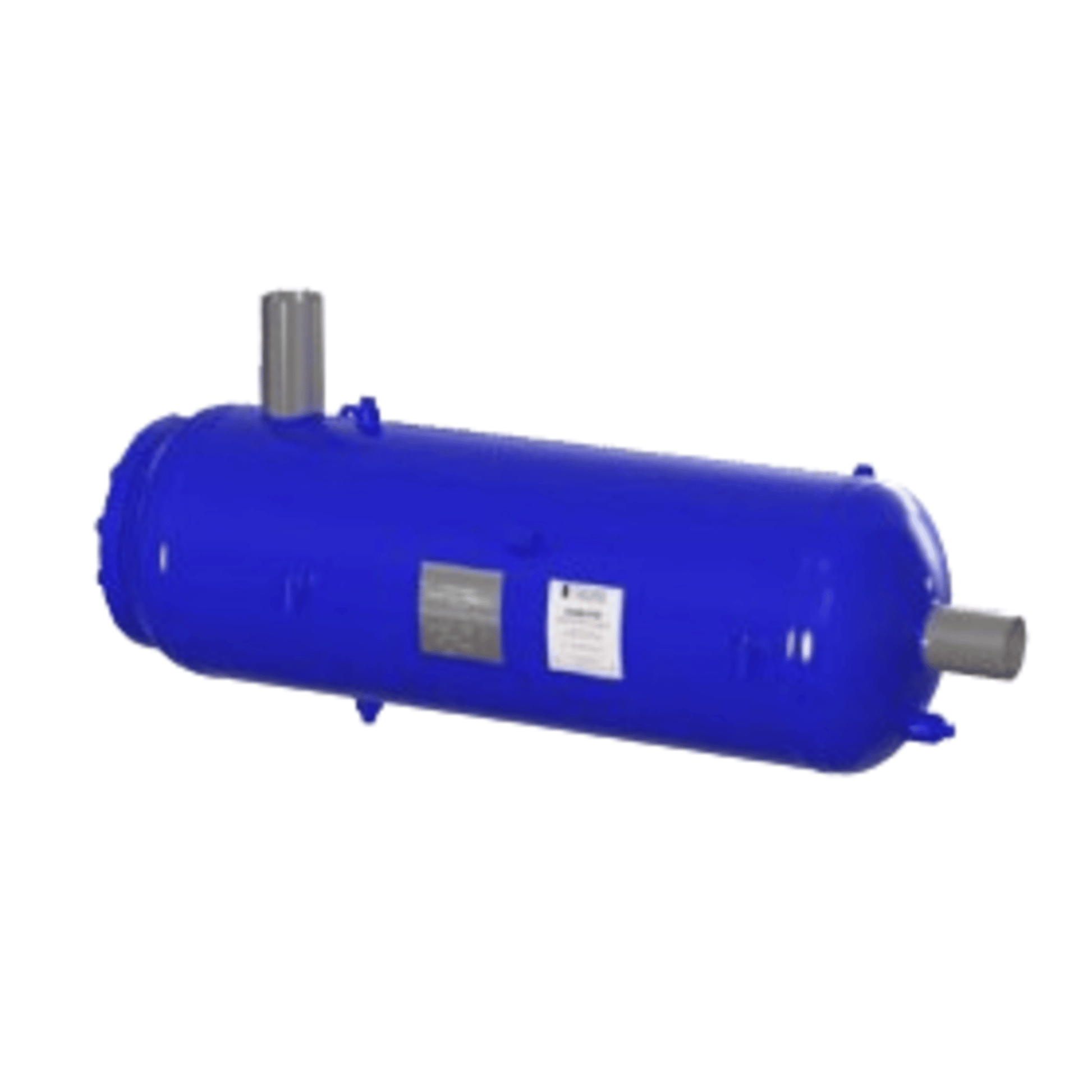

COSM-140 - Henry - 3 BW - 76mm - Coalescing Oil Separator

The Henry COSM-140 Coalescing Oil Separator is a high-efficiency oil separation unit designed for use in commercial and industrial refrigeration systems. Here's a detailed overview of its specifications and features:

Product: Henry COSM-140 Coalescing Oil Separator

• Model: COSM-140
• Connection Size: 3" BW (Butt Weld)
• Shell Diameter: 76 mm (3 inches)
• Construction: All-welded steel
• Design Standard: ASME Section VIII

Key Features

• Oil Separation Function: Removes oil from the discharge gas and returns it to the compressor, helping maintain crankcase oil levels and improving system efficiency
• Replaceable Coalescing Filter Element: Allows for easy maintenance and long service life
• Low Pressure Drop: Optimized internal design minimizes flow resistance
• Application: Suitable for use with HCFC, HFC, and CO₂ refrigerants

Technical Specifications

• Maximum Working Pressure: 48 Barg (696 PSIg)
• Operating Temperature Range: -10°C to +130°C (14°F to 266°F)
• Mounting Orientation: Typically vertical
• Weight: Approx. 374 lbs
