COSM-140F - Henry - 3-1/8 ODS - 79mm - Coalescing Oil Separator

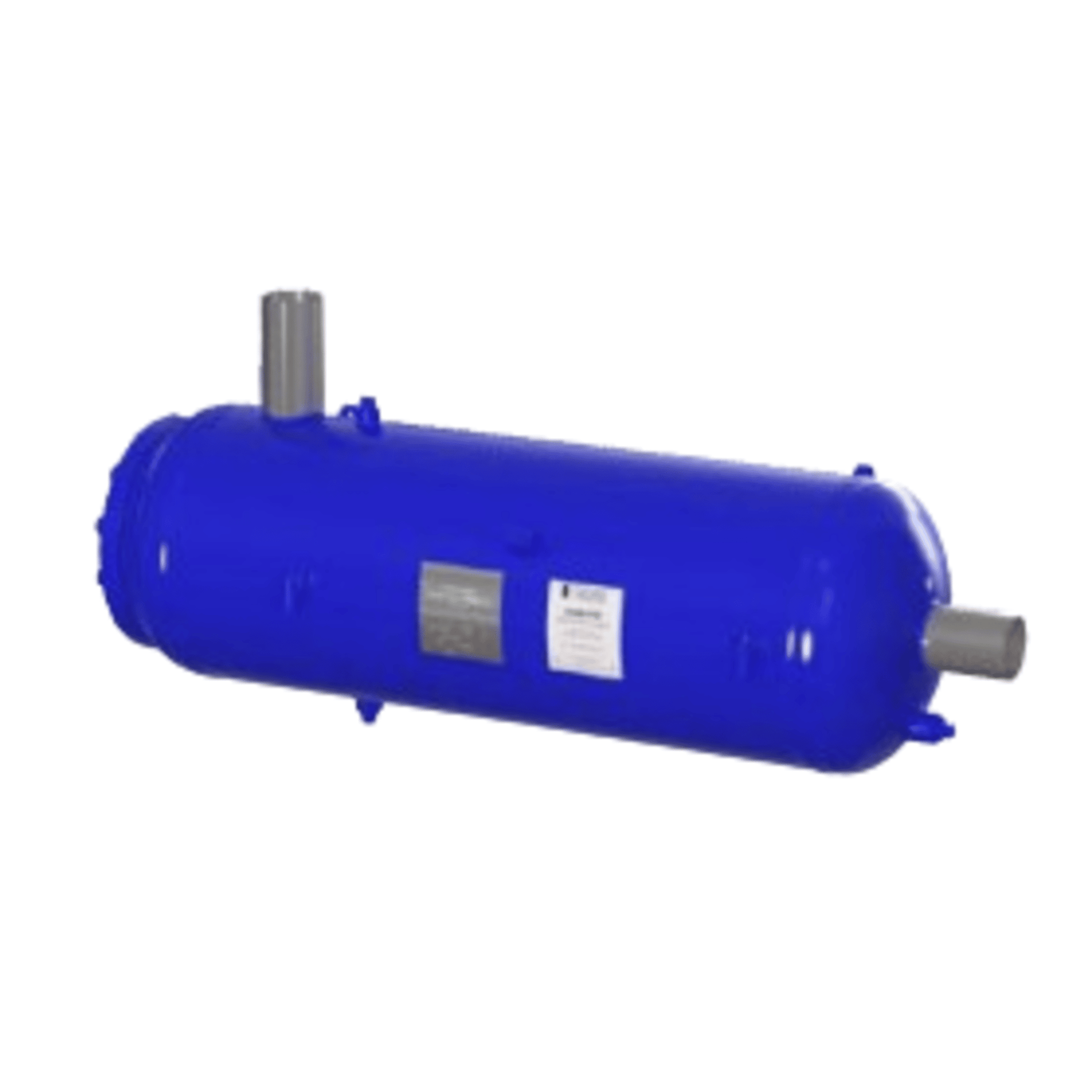

The Henry COSM-140F is a 3-1/8" ODS Coalescing Oil Separator designed for high-capacity refrigeration systems. Here's a detailed overview based on the latest technical data:

COSM-140F – Key Specifications

• Connection Size: 3-1/8" ODS (Outside Diameter Solder)
• Body Type: All-welded steel construction
• Design Standard: ASME Section VIII compliant
• Replaceable Screen: Yes, includes a replaceable coalescing element
• Mounting: Can be installed horizontally or vertically
• Dimensions:
  • A (Diameter): 16.00"
  • B (Height to inlet/outlet): 14.00"
  • C (Overall Height): 52.56"
  • D (Shell Length): 38.04"
  • E (Base to centerline): 5.46"
  • F (Inlet to outlet spacing): 30.54"
  • G (Mounting leg spacing): 20.10"
  • H (Mounting leg height): 6.66"

Performance Ratings (Nominal DCFM Capacity)

• R-717 (Ammonia): 140 DCFM
• R-290 (Propane), R-744 (CO₂): 135 DCFM
• R-22, R-23, R-407C, R-410A, R-508B: 105 DCFM
• R-134A, R-404A, R-507A, R-417A, R-422D, R-434A: 95 DCFM
  1

Applications

• Ideal for large industrial refrigeration systems
• Compatible with ammonia, halocarbon, and CO₂ refrigerants
• Designed to reduce oil carryover to below 10 ppm
• Helps maintain compressor oil levels and system efficiency
