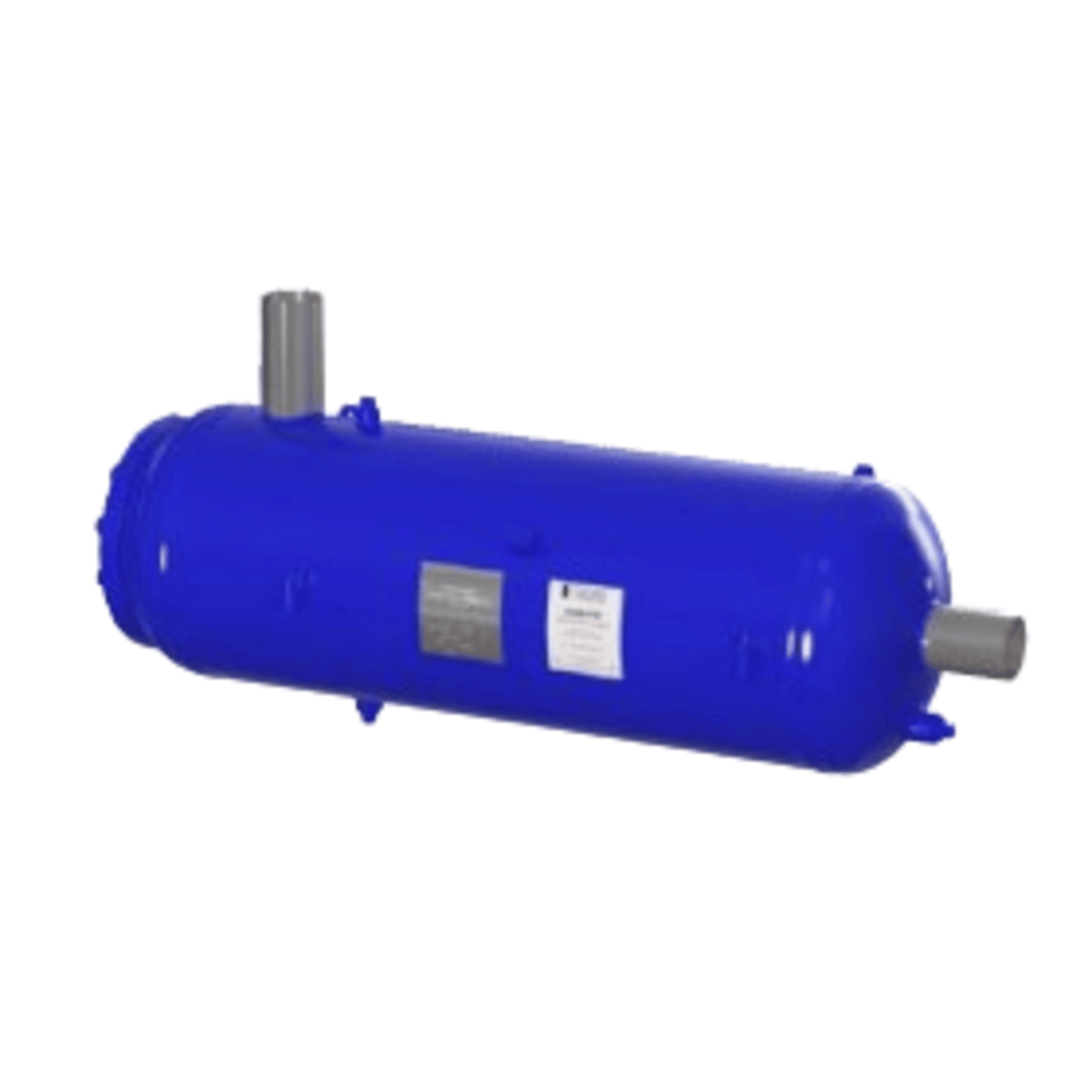

COSM-205 - Henry - 4 BW - 102mm - Coalescing Oil Separator

The Henry COSM-205 Coalescing Oil Separator is a high-efficiency oil separation unit designed for use in commercial and industrial refrigeration systems. Here's a detailed overview of its specifications and features:

Product: Henry COSM-205 Coalescing Oil Separator

• Model: COSM-205
• Connection Type: 4" BW (Butt Weld)
• Shell Diameter: 102 mm (4 inches)
• Design: Coalescing type with replaceable internal screen

Key Features

• Oil Separation Function: Removes oil from discharge gas and returns it to the compressor, helping maintain crankcase oil levels and improving system efficiency
• Replaceable Filter Element: Allows for easy maintenance and extended service life
• All-Welded Steel Construction: Built to ASME Section VIII standards for pressure vessels
• Application: Suitable for systems using HCFC, HFC, and CO₂ refrigerants

Technical Specifications

• Maximum Working Pressure: Typically rated up to 48 Barg (696 PSIg) for this series
• Operating Temperature Range: -10°C to +130°C (14°F to 266°F)
• Mounting: Horizontal or vertical
• Certifications: ASME Section VIII, CE, UKCA, UL207
