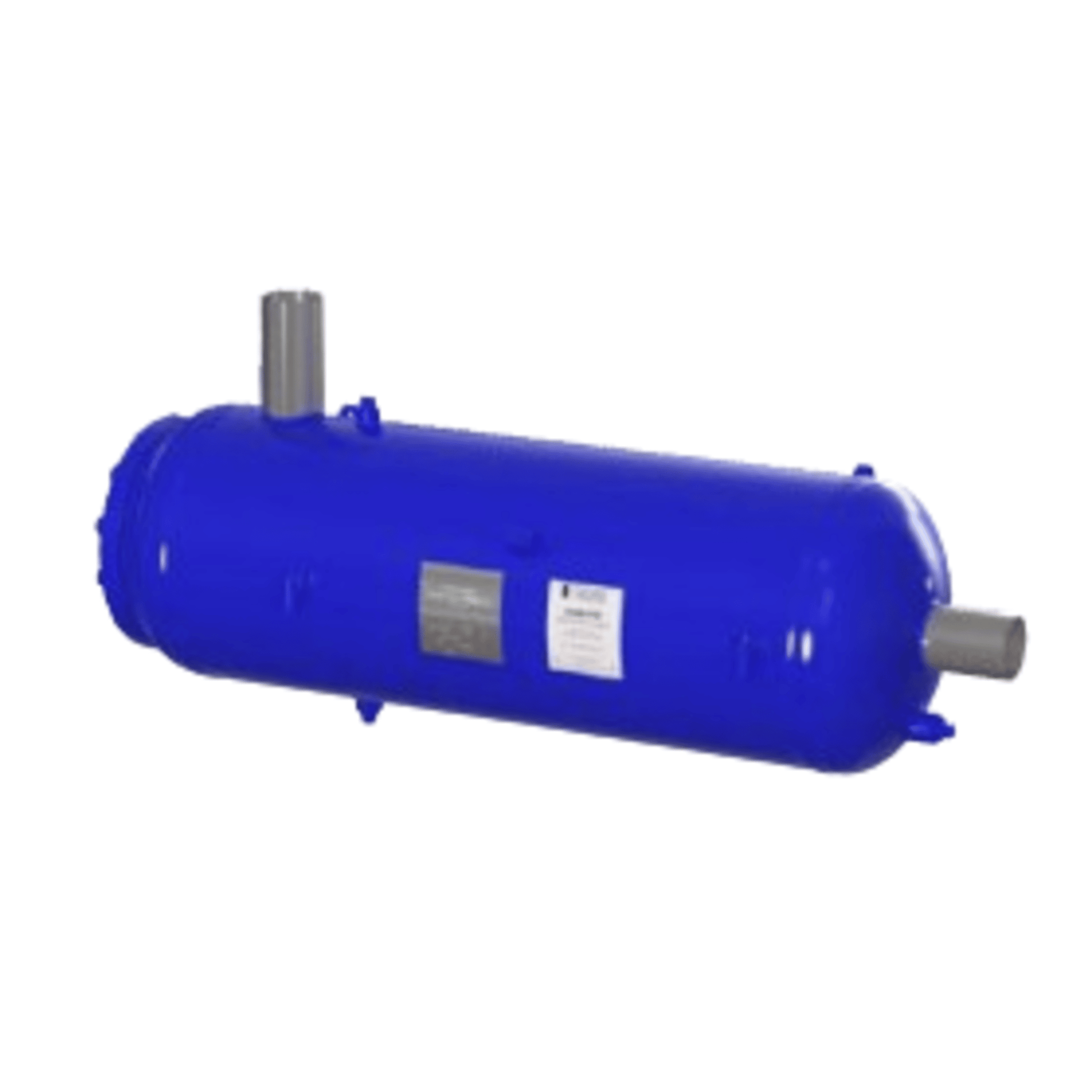

COSM-250 - Henry - 5 BW - 127mm - Coalescing Oil Separator

The Henry COSM-250 Coalescing Oil Separator is a high-efficiency component designed to remove oil particles from refrigerant vapor in commercial refrigeration and air conditioning systems. Here's a detailed breakdown of its specifications:

Product: Henry COSM-250 Coalescing Oil Separator

• Model: COSM-250
• Connection Size: 5 BW (Butt Weld)
• Shell Diameter: 127 mm (5 inches)
• Type: Coalescing with replaceable internal screen

Key Features

• High-Efficiency Oil Separation: Captures fine oil mist and returns it to the compressor, improving system efficiency
• Replaceable Filter Element: Allows for easy maintenance and extended service life
• Low Pressure Drop: Optimized internal design minimizes flow resistance
• Large Filtration Surface Area: Enhances oil separation performance
• Durable Construction: Built for long-term reliability in demanding environments

Technical Specifications

• Maximum Working Pressure: 48 Barg (696.1 PSIg)
• Operating Temperature Range: -10°C to +130°C (+14°F to +266°F)
• Refrigerant Compatibility: CO₂ (R744), HCFC, HFC
• Certifications: AS2971.2, CE, UKCA, UL207
