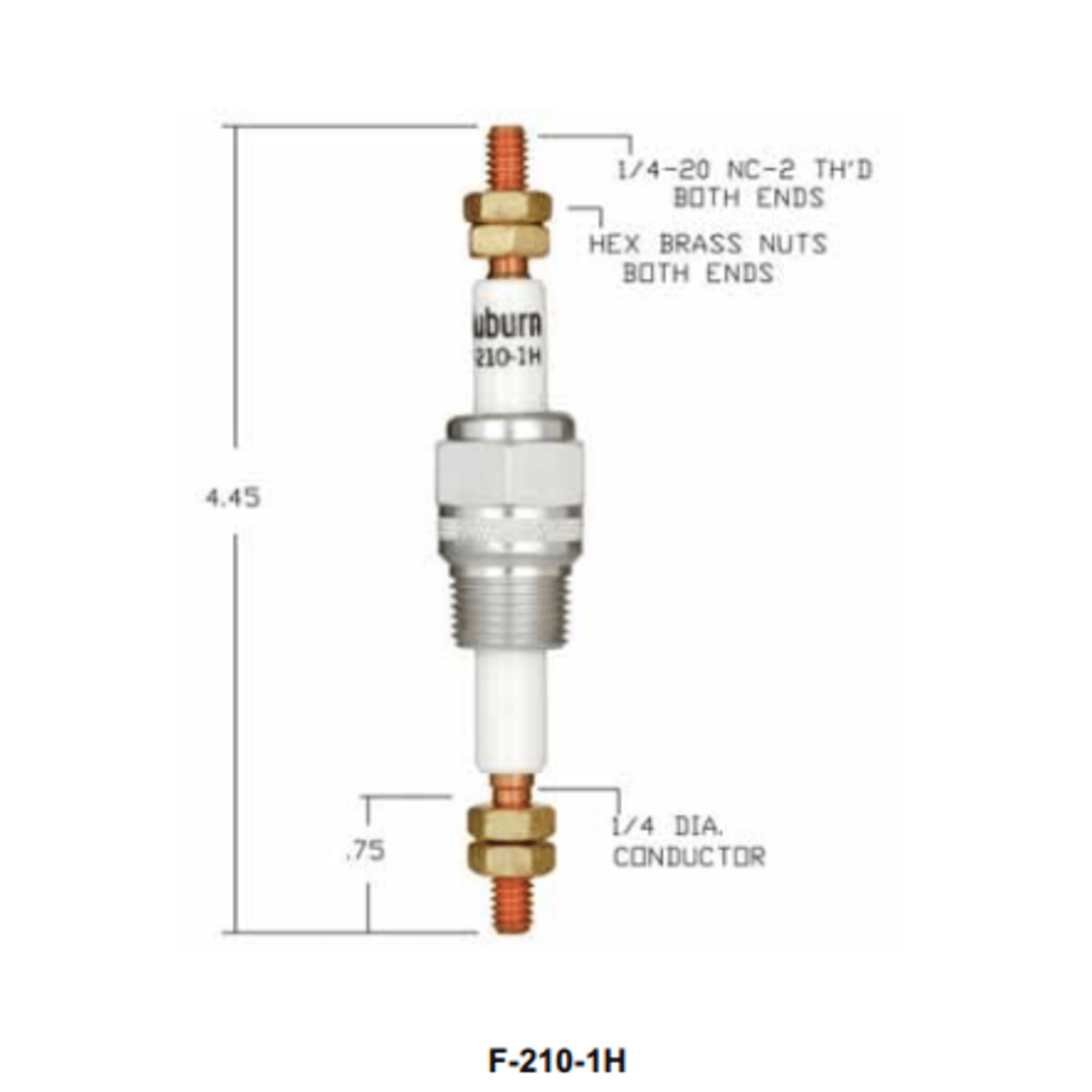

F-210-1H - Auburn - Feedthrough (CS13061)

The Auburn F-210-1H Feedthrough is a robust component used in various industrial applications. Here are some key details:

• Manufacturer: Auburn
• Part Number: F-210-1H (CS13061)
• Thread Size: 3/8-18 NPT
• Hex Size: 13/16"
• Overall Length: 4.45"
• Current Rating: 175 Amps
• Flash-Over Voltage: 8 kV
• Max Operating Temperature: 200°F
• Conductor Material: Copper
• Pressure Rating: Suitable for pneumatic applications up to 2500 psi

This feedthrough is designed to transmit current into a sealed vessel and is commonly used in power transformers, switchgear, and hermetically sealed compressors and motors
