FS1DL - Malco - Disc 1 Station Large

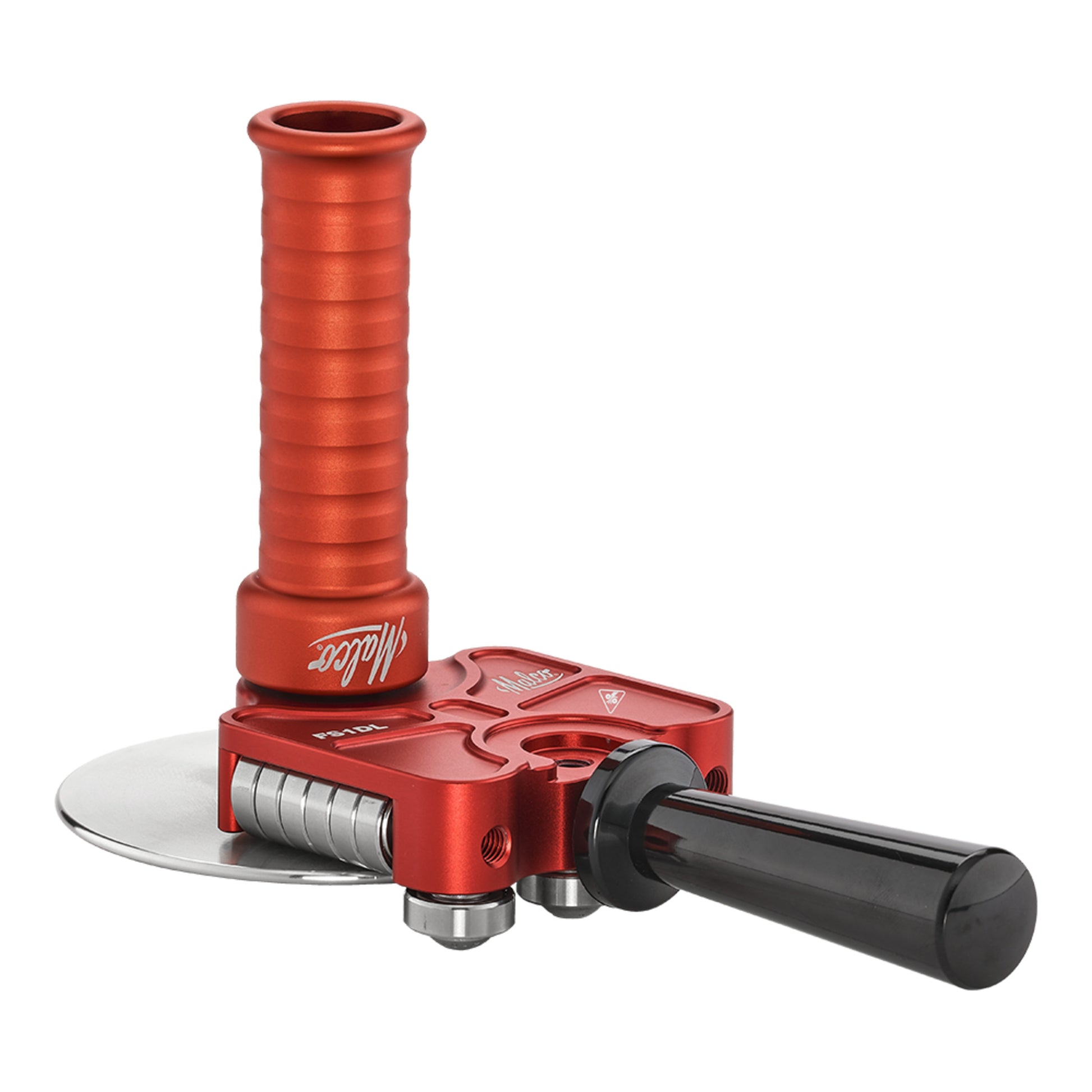

The Malco FS1DL - 1 Station Disc, Large is a professional-grade metal disc bender designed for forming precise bends in various sheet metal materials. Here's a detailed overview of its features and specifications:

Product Brochure

Product Overview

• Model: FS1DL (Large 1-Station Disc)
• Type: Metal Disc Bender
• Use Case: Ideal for short bends and curves in roofing, HVAC, and custom sheet metal work.

Bending Capabilities

• Bend Range: 5/16" to 1 3/4" (8 – 45 mm)
• Bend Radius: 0.059" (1.5 mm)
• Bend Angle: 90° to 180°
• Compatible Materials:
  • 24-gauge steel
  • 26-gauge stainless steel
  • 0.040" aluminum
  • 20 oz copper
  • 1 mm zinc

Features

• Removable Disc: Allows for quick disassembly and mid-panel tool removal.
• Material Guides: Three sets of bearing guides ensure smooth operation.
• Portability: Lightweight and compact for easy transport and storage.
• Durability: Made from CNC-machined aluminum and stainless steel for corrosion resistance and precision.
• Optional Handle: Can be paired with the FSH1 Disc Handle (sold separately) for enhanced control and versatility.
