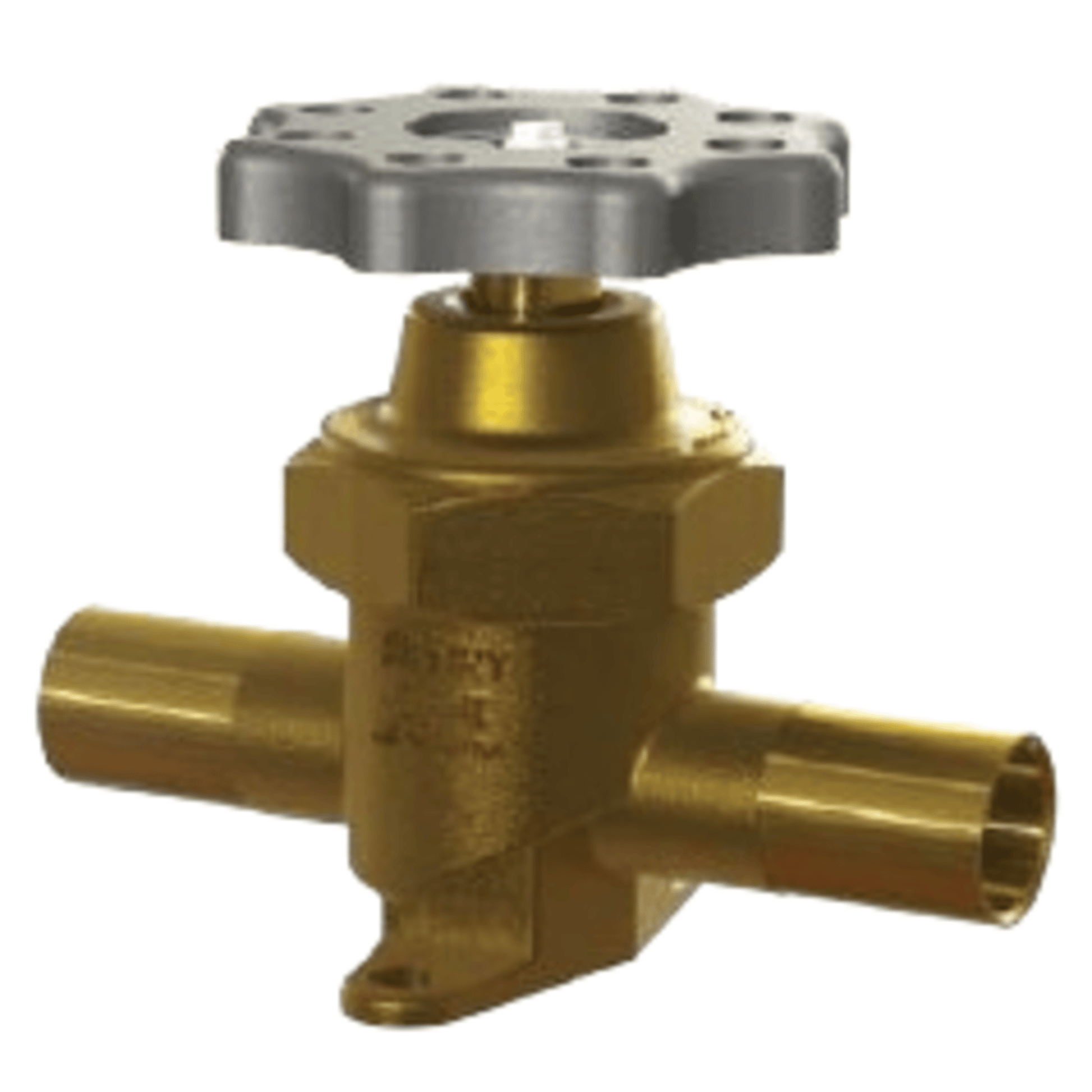

5161 - Henry - Packless Valve Brass Globe Type Shut-Off Golden Bantam 1/4" ODS (6.35mm)

Henry 5161 Packless Valve Brass Globe Type Shut-Off Golden Bantam 1/4" ODS (6.35mm).

Provide isolation for parts of the system for maintenance or flow control.

Features

• Forged Brass construction
• Heat stabilized nylon seat disc for positive shut off
• Positive back-seating with valve in fully opened position
• Large diameter diaphragm for greater lift, resulting in better flow
• ODS and NPT bottom connections
• Hermetic seal between body and bonnet, negates stem leakage. Can be used in enclosed spaces
• Compact design
• Sturdy die cast handwheel

Product Details

• Part Number: 5161
• Brand: Henry Technologies
• Series: Packless Valve Solder (UL)
• Category: Flow Controls › Isolating Valves
• Suitable For: Conventional Refrigerants
• Max Working Pressure: 34.5 Barg (500 PSIg)
• Operating Temperature Range: -29˚C to +135˚C (-20°F to +275°F)
• Refrigerant Compatibility: A2L, HC, HCFC, HFC and HFO where materially compatible
• Sizes Available: 1/4", 3/8", 1/2" and 5/8"
• Product Certification: ASME ANSI B31.5, AS/NZS 5149.2, CE, ISO 5149.2 and UL
