5246-350 - Henry - 1-1/4 MPT-1-1/4 FPT - 350 - Brass Straight-Thru Type

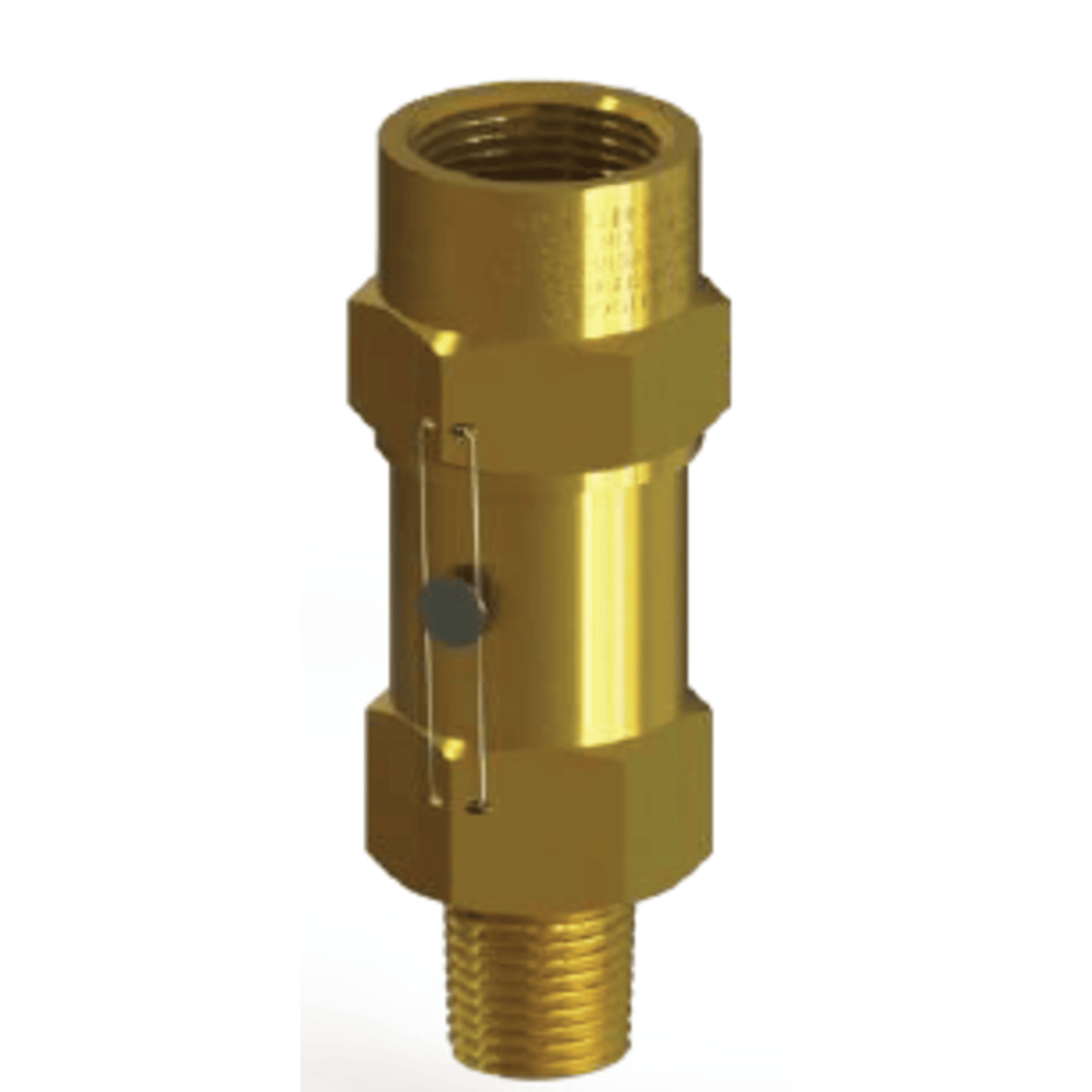

Henry 5246-350 Relief Valve

• Type: Brass Straight-Thru
• Inlet Size: 1 1/4" Male Pipe Thread (MPT)
• Outlet Size: 1 1/4" Female Pipe Thread (FPT)
• Material: Brass
• Application: Designed for use in refrigeration systems to prevent over-pressure due to system malfunction or excessive external heat.
• Suitable for: Refrigerant vapor or gas
• Installation: Typically installed on the top section of a pressure vessel, such as a liquid receiver or suction accumulator.
• Temperature Range: -40°F (-40°C) to +225°F (+107°C)
• Pressure Setting: 350 PSI
• Certifications: UV/NB Certified
