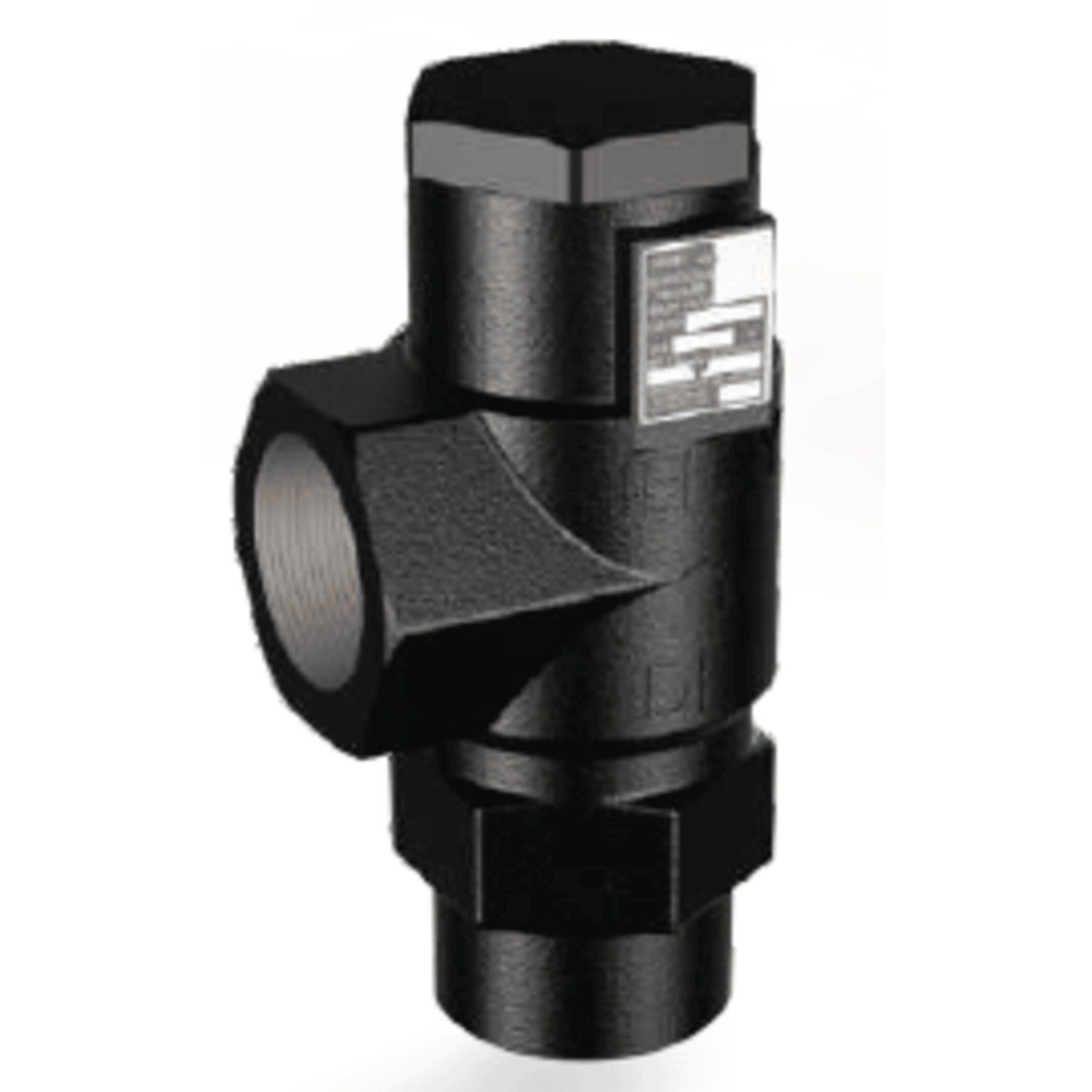

Henry 5600-200, Relief Valve, Cast Iron Angle Type, Inlet 1/2" FPT - Outlet 3/4" FPT

Henry 5600-200, Relief Valve, Cast Iron Angle Type, Inlet 1/2" FPT - Outlet 3/4" FPT

The Henry 5600-200 Relief Valve is a cast iron, angle-type pressure relief valve designed for industrial applications. Here are the key technical specifications:

  • Body Material: Cast Iron
  • Inlet Connection: 1/2" Female Pipe Thread (FPT)
  • Outlet Connection: 3/4" Female Pipe Thread (FPT)
  • Pressure Range: 150 psi to 450 psi
  • Temperature Range: -20°F to +225°F (-29°C to +107°C)
  • Seat Material: Teflon® or Neoprene
  • Certifications: ASME UV and National Board certified
  • Suitable Fluids: Ammonia, HFCs, CFCs, and other industrial fluids non-corrosive to steel and Teflon
  • Features:
    • Stainless steel seat inserts and discs
    • Protective lacquer finish
    • Unique serialization for tagging requirements

This valve is designed to protect against accidental over-pressure in pressure vessels due to system malfunctions or fire
