5627-300-CE - Henry - Rupture Disc Assembly (Steel) 3/4" MPT x 3/4" FPT 300
SKU HEN-5627-300-CE
Original price
$1,380.94
-
Original price
$1,380.94
Original price
$1,380.94
$1,380.94
-
$1,380.94
Current price
$1,380.94
Availability:
In stock - ships in 2-3 days

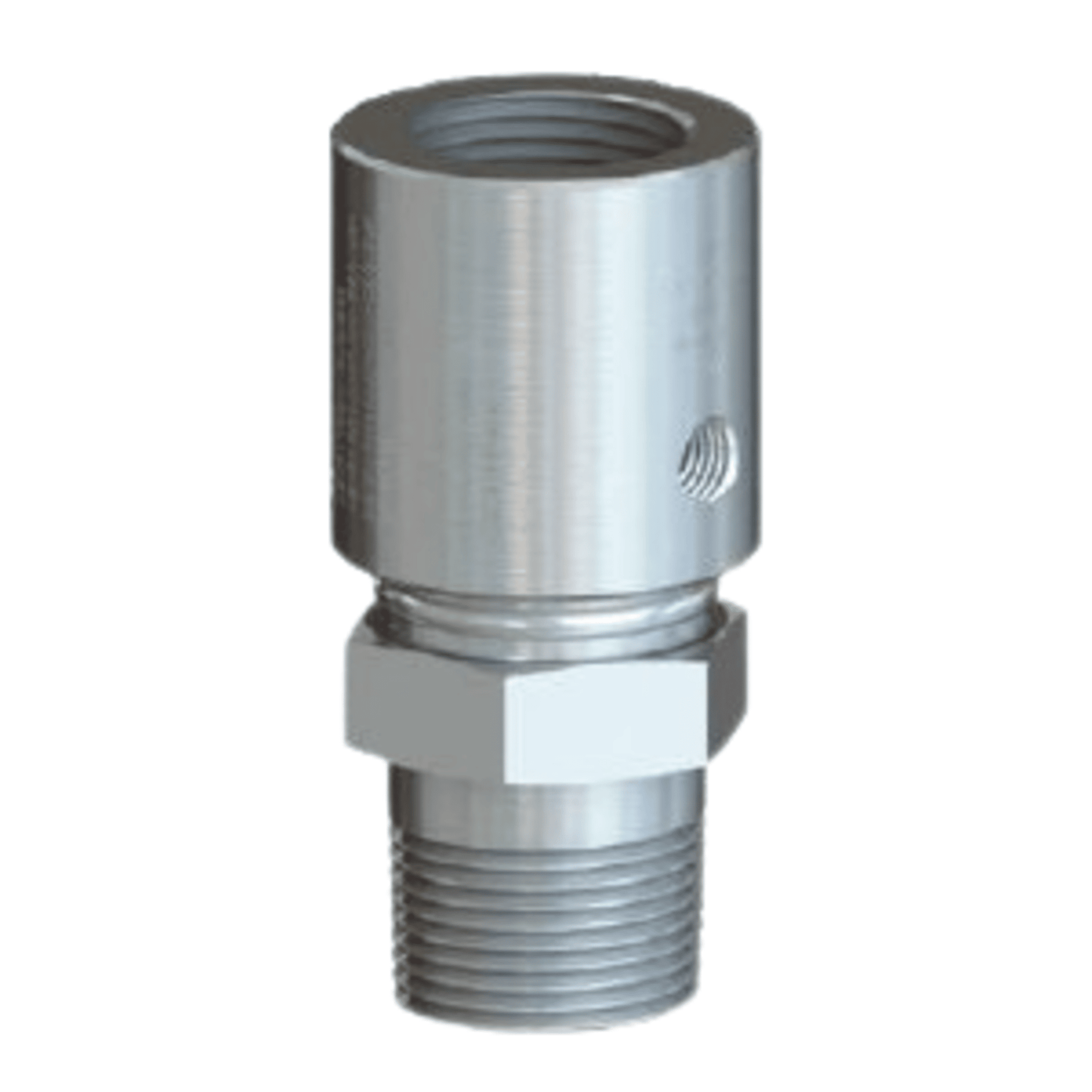

Henry 5627-300-CE Rupture Disc Assembly (Steel) 3/4" MPT x 3/4" FPT 300.
Protect against over pressure and protect against any leakage or weeping of refrigerant through a relief valve.
Features
- Proven safe design
- High flow capacity
- Compact
- Reverse acting, non-fragmenting disc
- 2 x 1/8″ NPT pressure ports
- Helium leak tested
- Pressure settings up to 130 Barg available on request
Product Details
- Part Number: 5627-300-CE
- Brand: Henry Technologies
- Series: Stainless Steel Rupture Disc
- Category: Safety Devices › Rupture Discs
- Suitable For: A2L Refrigerants, Ammonia, Conventional Refrigerants, Transcritical CO2
- Max Working Pressure: 130 Barg (1885 PSIg)
- Operating Temperature Range: -40°C to +427°C (-40°C to +800.6°F)
- Refrigerant Compatibility: A2L, Ammonia, CO2, HC, HCFC, HFC and HFO where materially compatible
- Sizes Available: 3/8" to 1 1/4"
- Product Certification: ASME-UD, CE, EN ISO 4126-2 and UKCA
