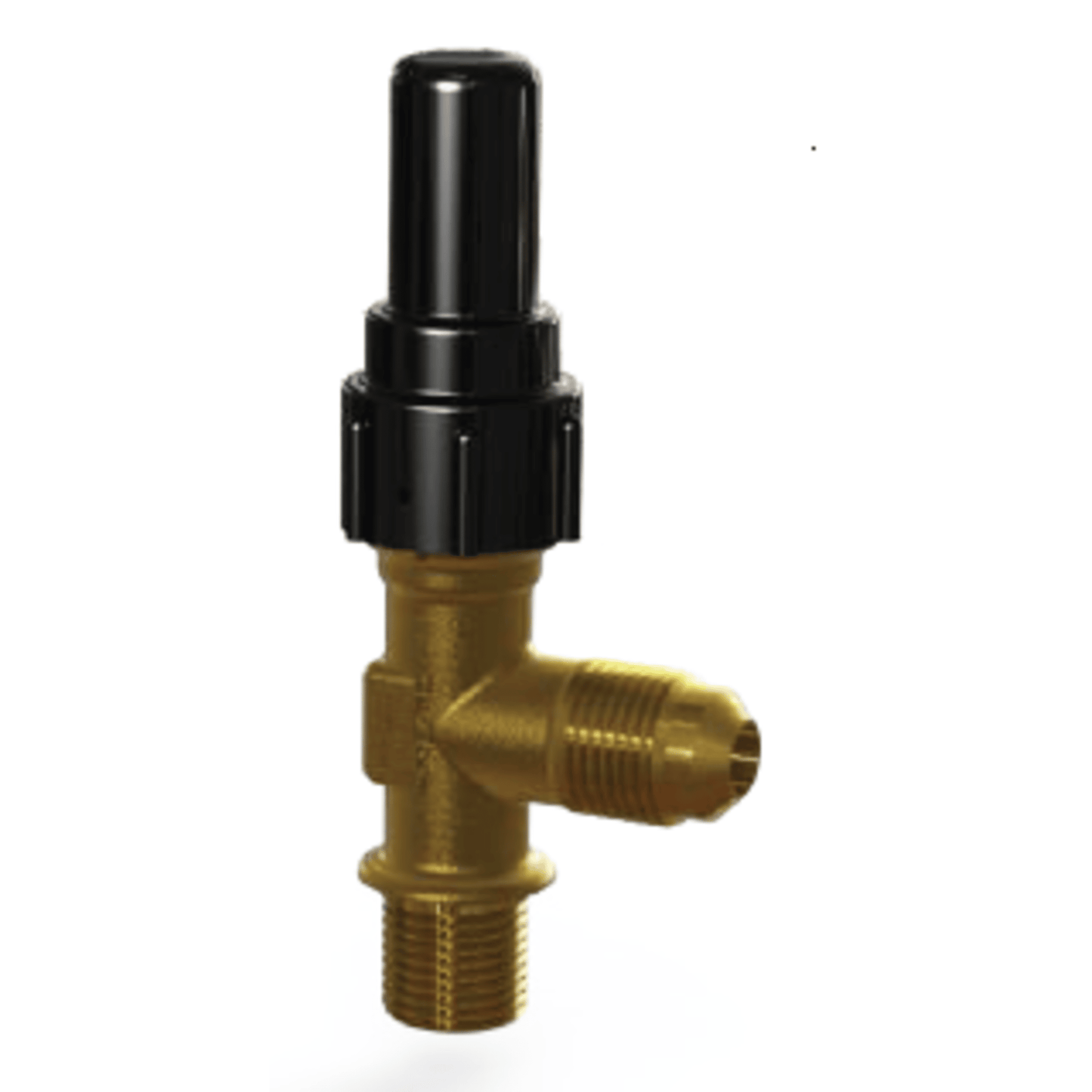

Henry 7766-B, Brass Seal Cap Angle Shut-Off Valves, 3/8 MPT x 3/8 FL

The Henry 7766-B Packless Brass Seal Cap Angle Shut-Off Valve is a high-quality component designed for use in air conditioning and refrigeration systems. Here are its key technical specifications and features:

• Material: The valve body is made from brass, providing excellent durability and resistance to corrosion. The stem is constructed from plated steel, and the seal cap is made from molded plastic
• Connections: It features a 3/8" Male Pipe Thread (MPT) connection at the bottom and a 3/8" SAE Flare (FL) connection on the side
• Design: This is an angle shut-off valve, which changes the direction of flow by 90 degrees. It is packless, meaning it uses a packed gland to seal the stem, reducing the risk of leaks
• Operating Pressure: The valve can handle a maximum operating pressure of 34.5 bar (500 PSI)
• Operating Temperature: Suitable for temperatures ranging from -29°C to +135°C (-20°F to +275°F)
• Applications: Ideal for isolating, flow control, charging, and purging in systems using HCFC and HFC refrigerants, as well as ammonia
• Certifications: The valve is UL and C-UL listed, ensuring it meets safety and performance standards

This valve is known for its reliability and ease of maintenance, making it a preferred choice in both commercial and industrial settings.
