S-848-C - Henry - DRI-COR Filter-Drier - Replacement Core Filter

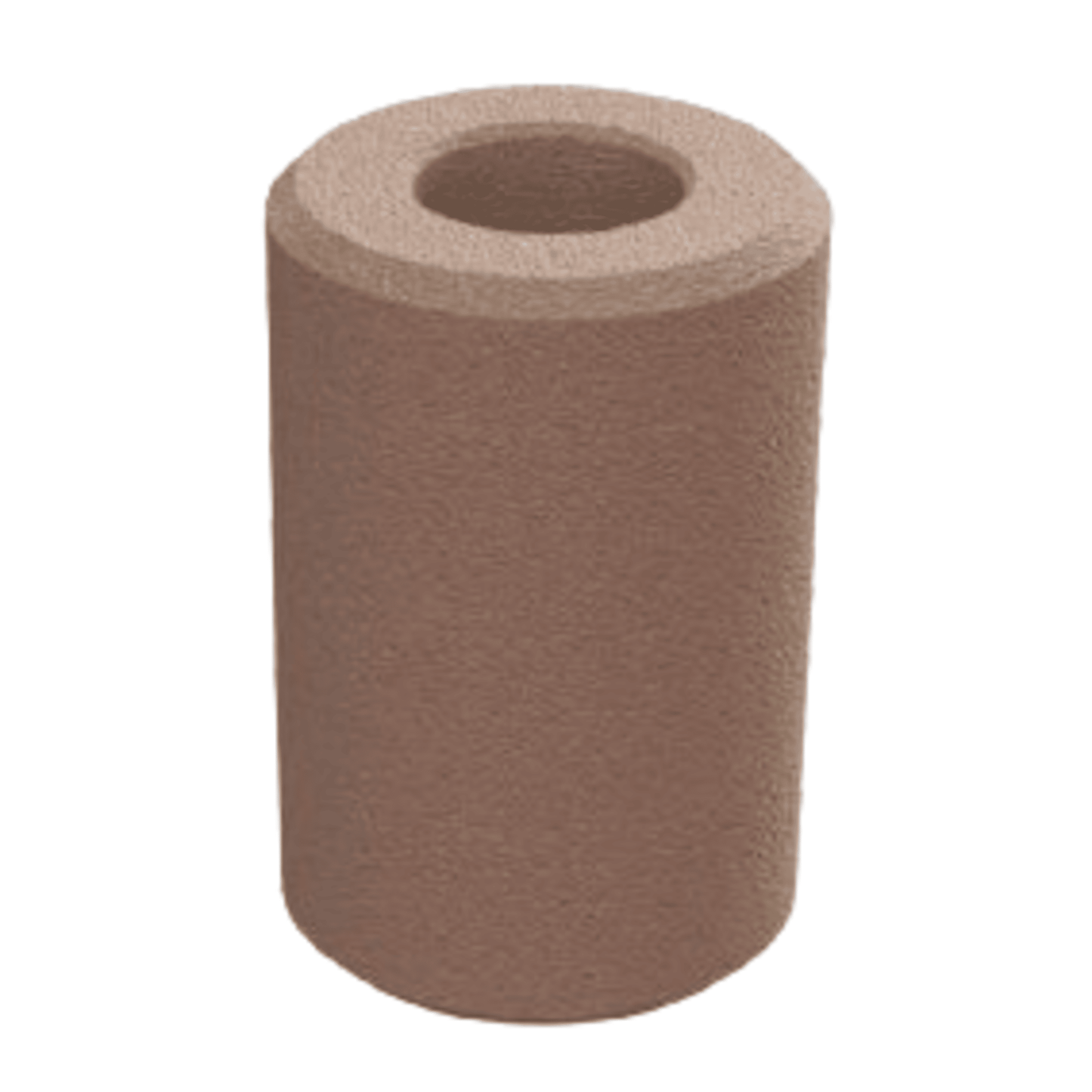

The Henry S-848-C Replacement Core, also known as the DRI-COR Filter-Drier, is designed for use in refrigeration and air-conditioning systems. Here are the key technical details:

Technical Specifications

• Material Composition: Constructed from a molded composite of desiccant materials, providing high mechanical strength and effective filtration.
• Filtration Capability: Contains 80% molecular sieve and 20% activated alumina, offering high moisture absorption and acid removal.
• Maximum Working Pressure: 609 PSI (42 Bar).
• Operating Temperature Range: -40°F to +158°F (-40°C to +70°C).
• Compatibility: Suitable for use with HCFC, HFC, and CO2 refrigerants.
• Design Features:
  • Stainless steel mesh screen for durability.
  • Solid copper full-flow connections.
  • Corrosion-resistant, powder-coated shells.
  • Interchangeable cores for flexibility in various applications.

Applications

The S-848-C core is designed to be used in both the liquid and suction lines of refrigeration and air-conditioning systems. It is particularly effective in removing system contaminants, moisture, and acid, ensuring the longevity and efficiency of the system.
