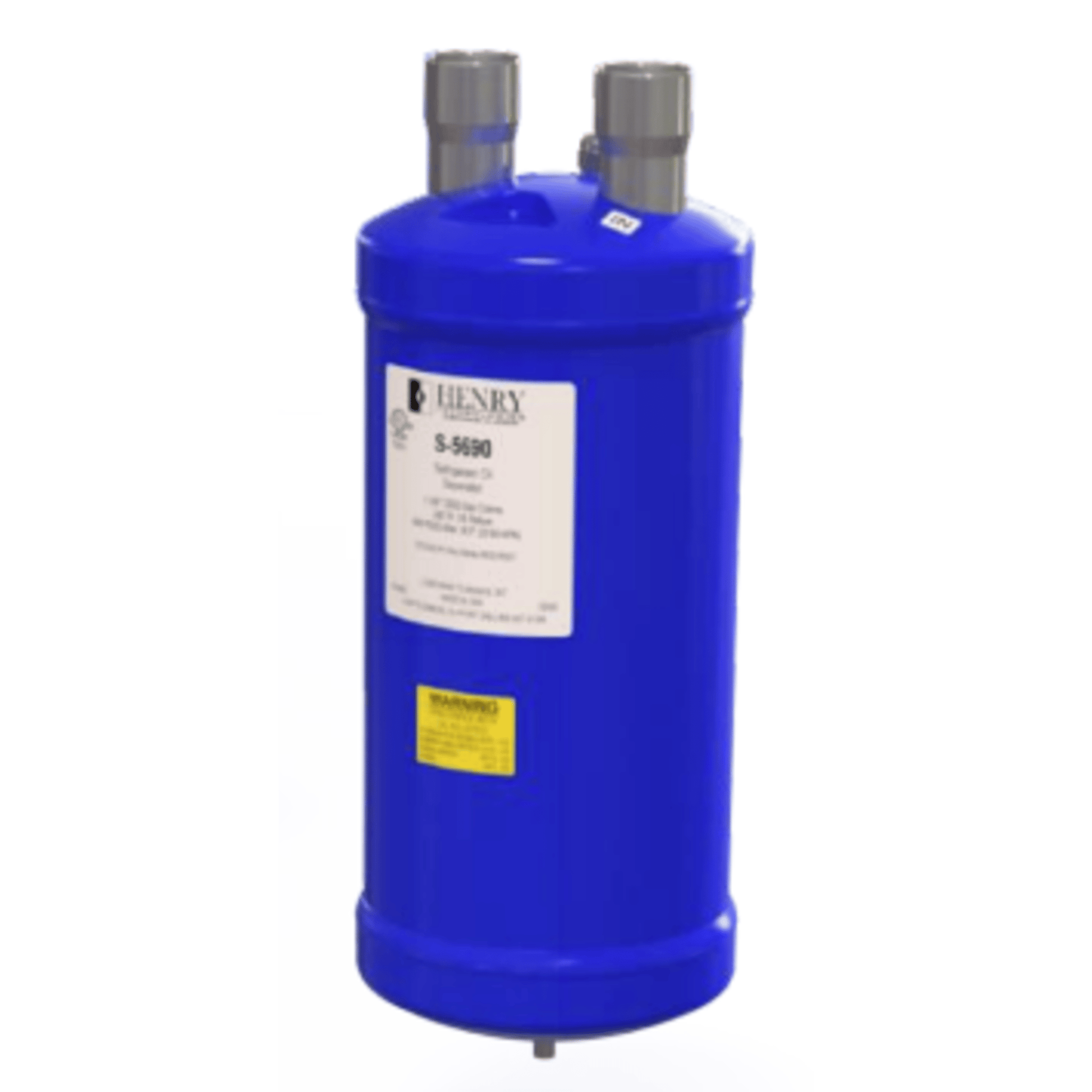

S-5690 - Henry - 1-3/8" ODS, 3/8 FL Return - Oil Separator

The Henry S-5690 is a Helical Oil Separator designed for use in refrigeration and air conditioning systems. Here's a breakdown of its key specifications and features:

Henry S-5690 – Product Overview

• Connection Size: 1-3/8" ODS (suction/discharge line)
• Oil Return Connection: 3/8" FL (flare)
• Type: Helical Oil Separator with internal float mechanism
• Construction: All-welded steel body with powder coating
• Mounting: Foot-mounted for secure installation
• Weight: Approximately 24 lbs (10.9 kg)

Key Features

• Helical Flow Path: Enhances oil separation efficiency by creating centrifugal force to separate oil from refrigerant gas.
• Internal Float Mechanism: Automatically returns separated oil to the compressor crankcase.
• Secondary Screen Cone: Provides additional filtration to prevent oil carryover.
• Removable Float Assembly: Allows for maintenance or replacement without removing the entire separator.
• Refrigerant Compatibility: Suitable for A2L, CO₂, HCFC, HFC, HFO, and HC refrigerants (where material compatibility is ensured)
• Operating Temperature Range: -10°C to +130°C (14°F to 266°F)
• Maximum Working Pressure: 31 Barg (449.6 PSIg)
