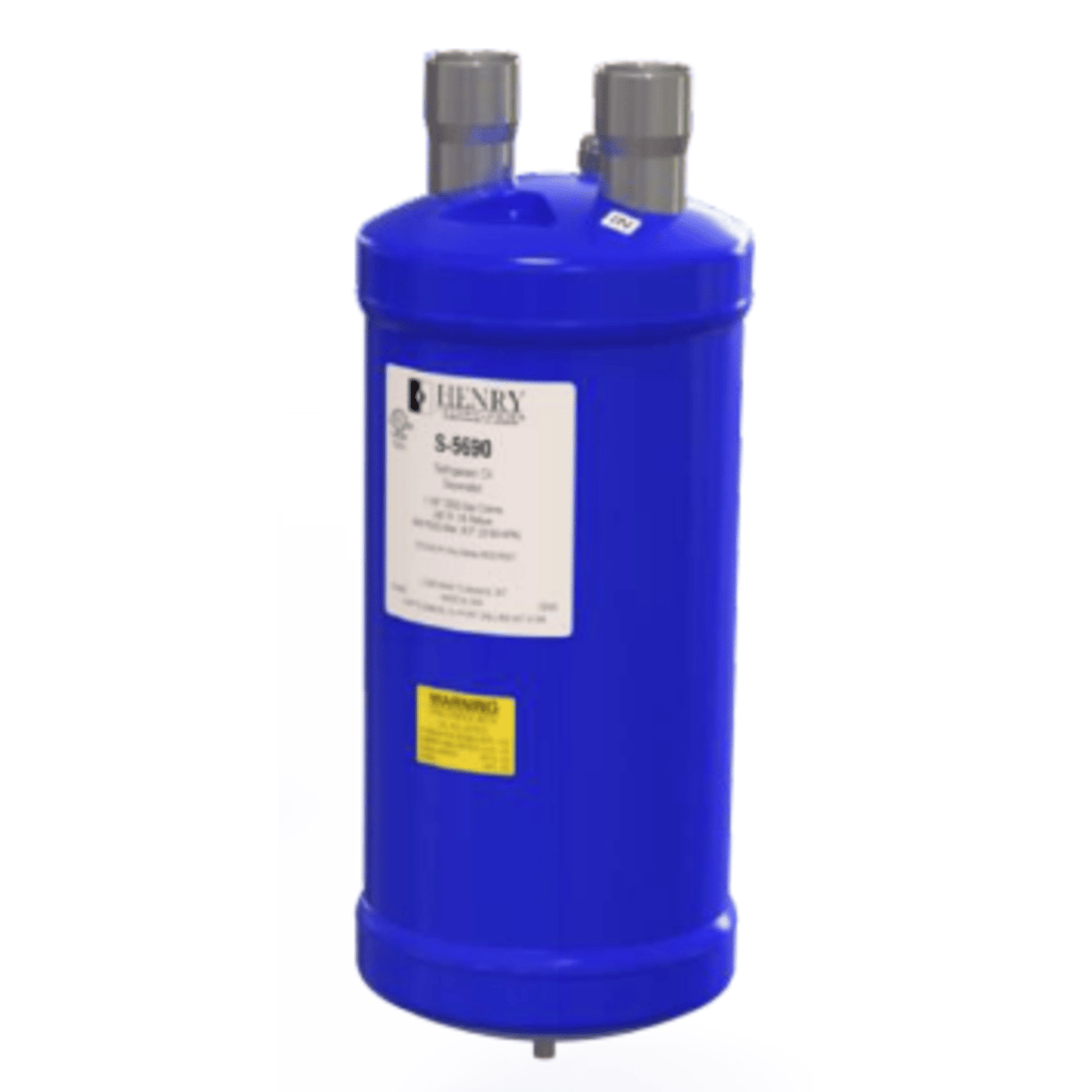

S-5694 - Henry - 2-1/8" ODS, 3/8 FL Return - Oil Separator

The Henry S-5694 is a Helical Oil Separator designed for use in refrigeration systems, particularly those requiring efficient oil separation and return. Here's a detailed overview:

Henry S-5694 – Key Specifications

• Connection Size: 2-1/8" ODS (suction/discharge line)
• Oil Return Connection: 3/8" FL (flare)
• Type: Helical Oil Separator with internal float mechanism
• Mounting: Foot-mounted
• Weight: Approximately 24 lbs (10.9 kg)
• Construction: All-welded carbon steel body with powder coating

Features

• Helical Flow Path: Uses centrifugal force to separate oil from refrigerant gas.
• Internal Float Mechanism: Automatically returns separated oil to the compressor crankcase.
• Secondary Screen Cone: Enhances oil separation efficiency.
• Removable Float Assembly: Allows for easy maintenance or replacement.
• Refrigerant Compatibility: Suitable for HCFC, HFC, HFO, CO₂, and A2L refrigerants (with material compatibility).
• Operating Temperature Range: -10°C to +130°C (14°F to 266°F)
• Maximum Working Pressure: 31 Barg (449.6 PSIg)
