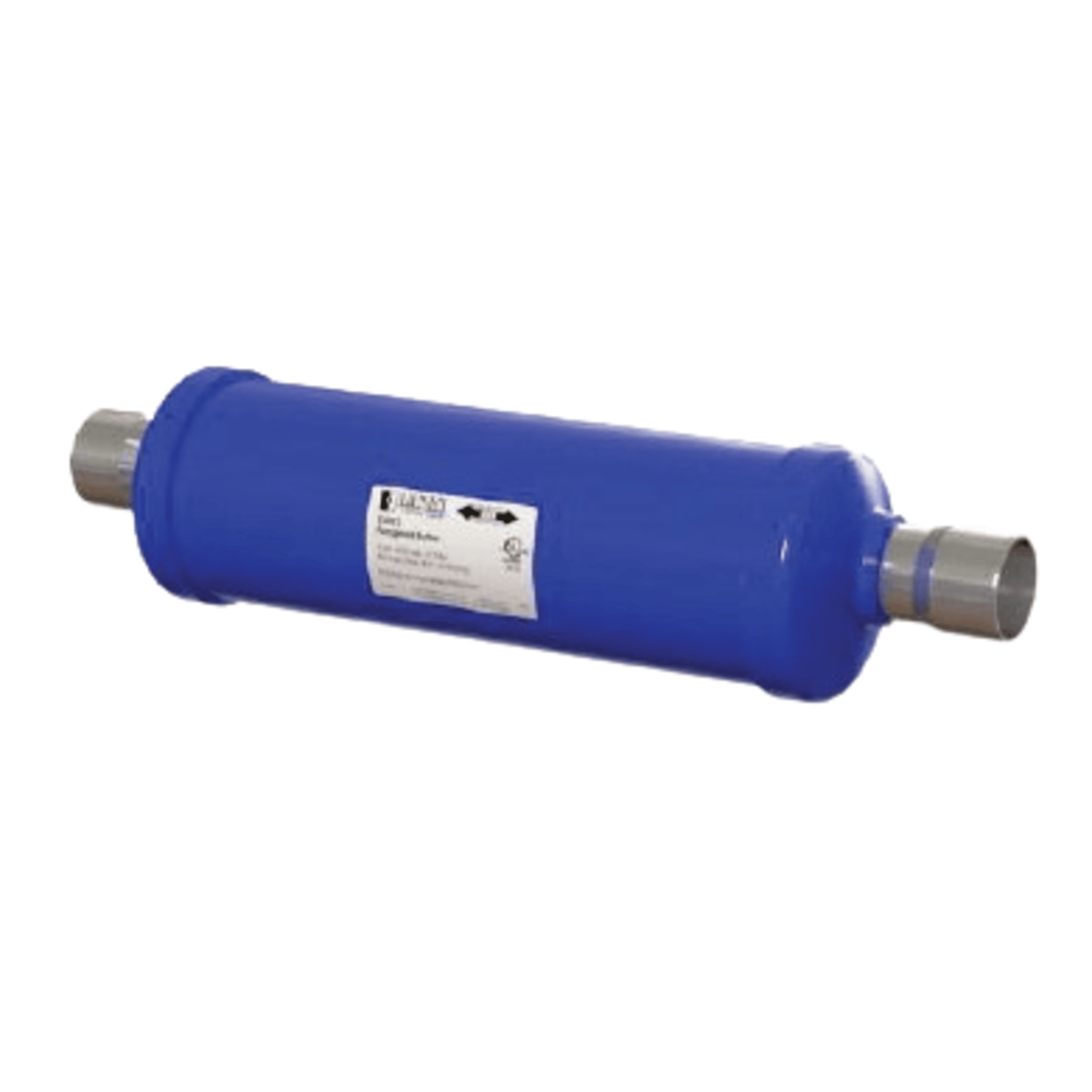

S-6411 - Henry - 1-1/8 ODS - 29mm - Muffler, Discharge Line

The Henry S-6411 Discharge Line Muffler is designed to reduce noise and pulsation in the discharge lines of refrigeration and air-conditioning systems. Here's a detailed overview of its specifications:

Product: Henry S-6411 Discharge Line Muffler

• Connection Size: 1-1/8" ODS (Outside Diameter Solder)
• Body Diameter: 29 mm (approx. 1.14 inches)
• Length: Approx. 13.75 inches
• Weight: ~5 lbs

Key Features

• Noise & Pulsation Reduction: Internal baffles reduce high-frequency sound waves and pulsations from compressor discharge lines
• Bi-directional Flow: Allows for flexible installation orientation
• Low Pressure Drop: Designed to minimize flow resistance
• Oil Drain Passage: Prevents oil collection when installed correctly
• Powder-Coated Finish: Enhances corrosion resistance
• Construction:
  • Body & Baffles: Carbon steel
  • Connections: Plated carbon steel

Technical Specifications

• Maximum Working Pressure: 31 Barg (449.6 PSIg)
• Operating Temperature Range: 0°C to +121°C (+32°F to +249.8°F)
• Refrigerant Compatibility: CO₂, HCFC, HFC, and (for this model) A2L, HC, and HFO refrigerants where material compatibility is ensured
• Certifications: AS2971.2, CE, UKCA, UL207
