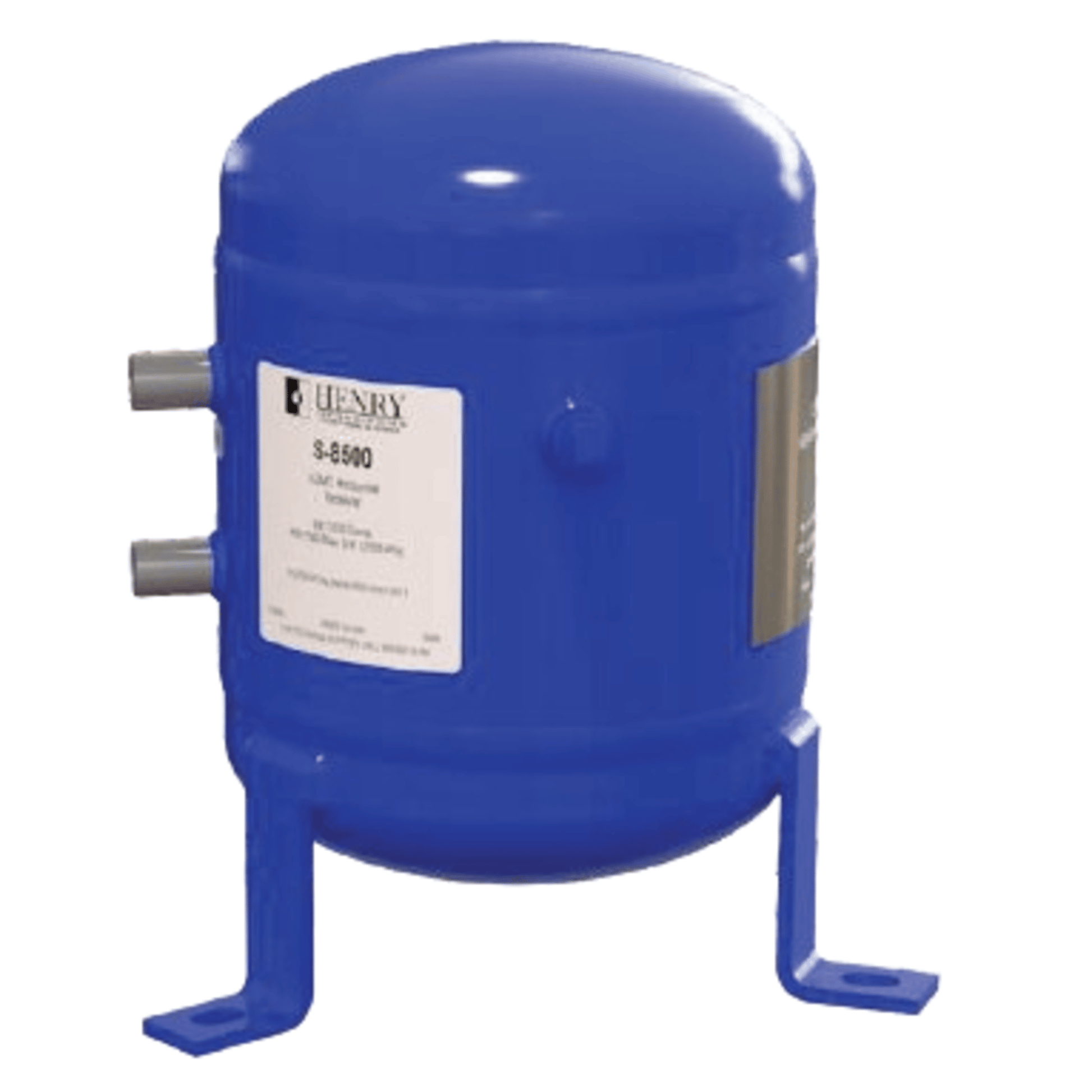

S-8500-HP - Henry - 219.1 x 305 - 5/8 ODS in X 5/8 ODS out - Receiver

The Henry S-8520-HP is a high-pressure vertical liquid refrigerant receiver designed for compact commercial refrigeration systems. Here's a detailed breakdown of its specifications:

🔧 Technical Specifications

• Model: S-8520-HP
• Shell Dimensions:
  • Diameter: 273.1 mm (10.75 inches)
  • Length: 457 mm (18 inches)
• Inlet Connection: 5/8" ODS
• Outlet Connection: 7/8" ODS
• Mounting: Vertical with mounting legs
• Refrigerant Compatibility: Suitable for high-pressure refrigerants, including R-410A
• Construction: Fully welded steel body
• Finish: Powder-coated for corrosion resistance

⚙️ Functional Features

• Primary Function: Stores liquid refrigerant and ensures a steady, controlled supply to the expansion device.
• Design Features:
  • Compact vertical design for space-constrained installations
  • High-pressure rating for modern refrigerants
