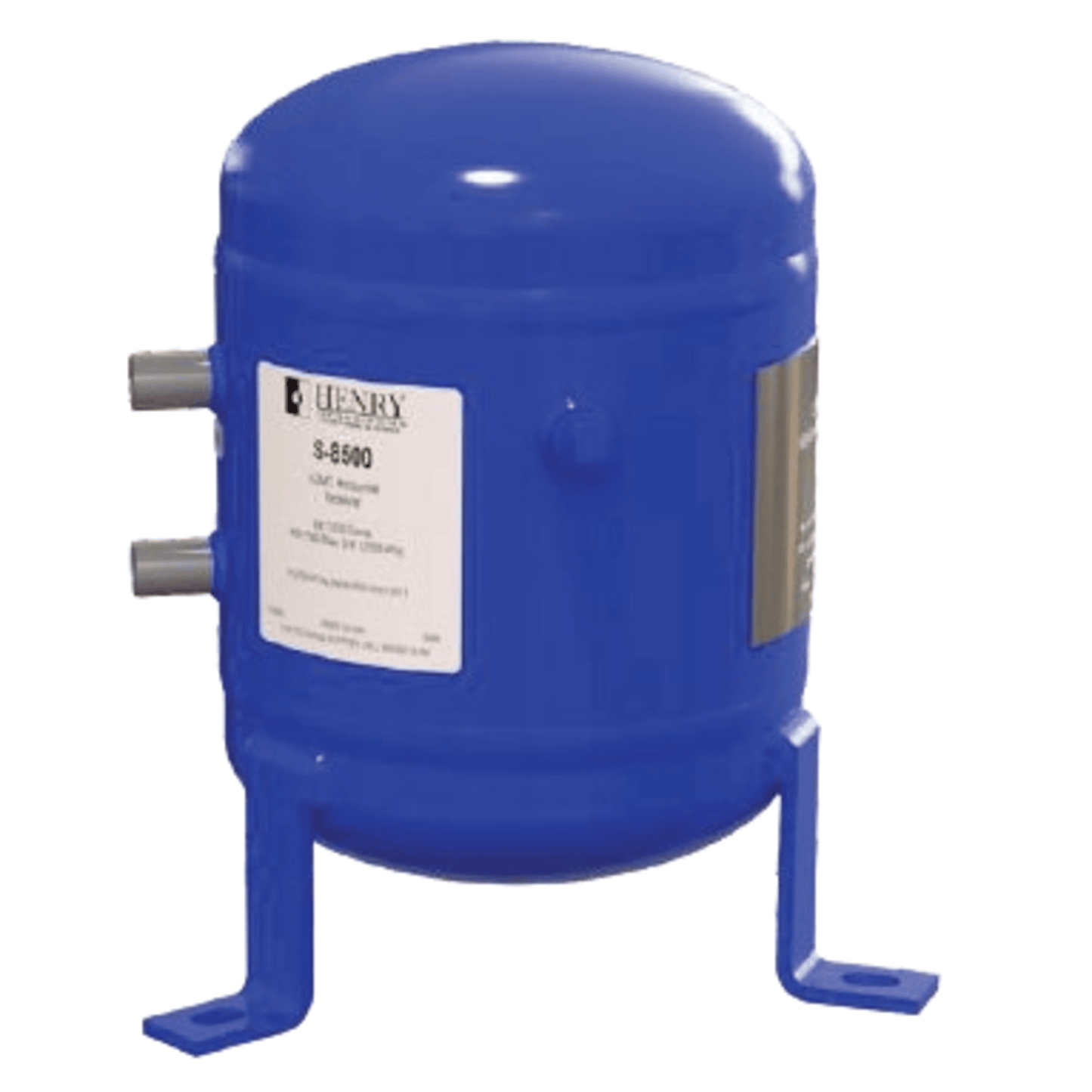

S-8540-HP - Henry - 323.9 x 508 - 1-1/8 ODS in X 1-1/8 ODS out - Receiver

The Henry S-8540-HP is a high-pressure vertical liquid refrigerant receiver designed for use in commercial and industrial refrigeration systems. Here's a detailed breakdown of its specifications:

🔧 Technical Specifications

• Model: S-8540-HP
• Shell Dimensions:
  • Diameter: 323.9 mm (12-3/4 inches)
  • Length: 508 mm (20 inches)
• Inlet Connection: 1-1/8" ODS
• Outlet Connection: 1-1/8" ODS
• Mounting Orientation: Vertical
• Construction: Fully welded, two-piece vertical design
• Material: High-quality steel
• Finish: Rugged powder-coated exterior for corrosion resistance
• Certifications: ASME certified for high-pressure applications

⚙️ Functional Features

• Primary Function: Stores liquid refrigerant and ensures a steady, controlled supply to the expansion device.
• Design Features:
  • Equipped with Rotalock connectors
  • Internal dip tube for efficient refrigerant flow
  • Compact size ideal for systems with limited vertical space
