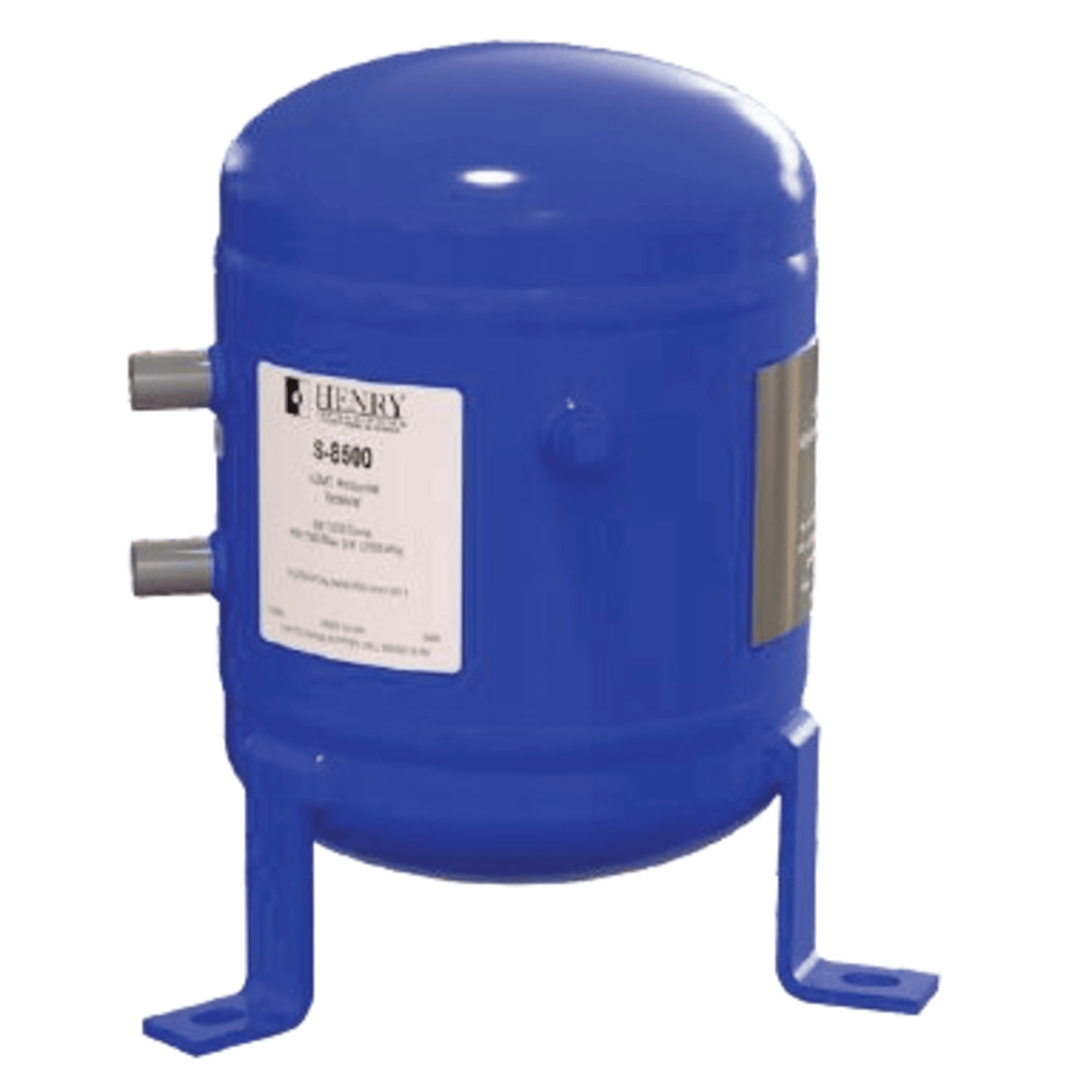

S-8550-HP - Henry - 323.9 x 610 - 1-1/8 ODS in X 1-1/8 ODS out - Receiver

The Henry S-8550-HP is a high-pressure vertical liquid refrigerant receiver designed for use in commercial and industrial refrigeration systems. Here's a detailed breakdown of its specifications:

🔧 Technical Specifications

• Model: S-8550-HP
• Shell Dimensions:
  • Diameter: 323.9 mm (12.75 inches)
  • Length: 610 mm (24 inches)
• Inlet Connection: 1-1/8" ODS
• Outlet Connection: 1-1/8" ODS
• Mounting Orientation: Vertical
• Material: Heavy-duty steel
• Finish: Powder-coated for corrosion resistance
• Pressure Rating: High-pressure (typically up to 450 PSI, depending on configuration)

⚙️ Functional Features

• Primary Function: Stores liquid refrigerant and ensures a steady, controlled supply to the expansion device.
• Design Features:
  • Designed for high-pressure refrigerants
