S-8760 - Henry - 323.9 x 1524.0mm - 1-5/8 ODS in-1-3/8 ODS out - Horizontal ASME

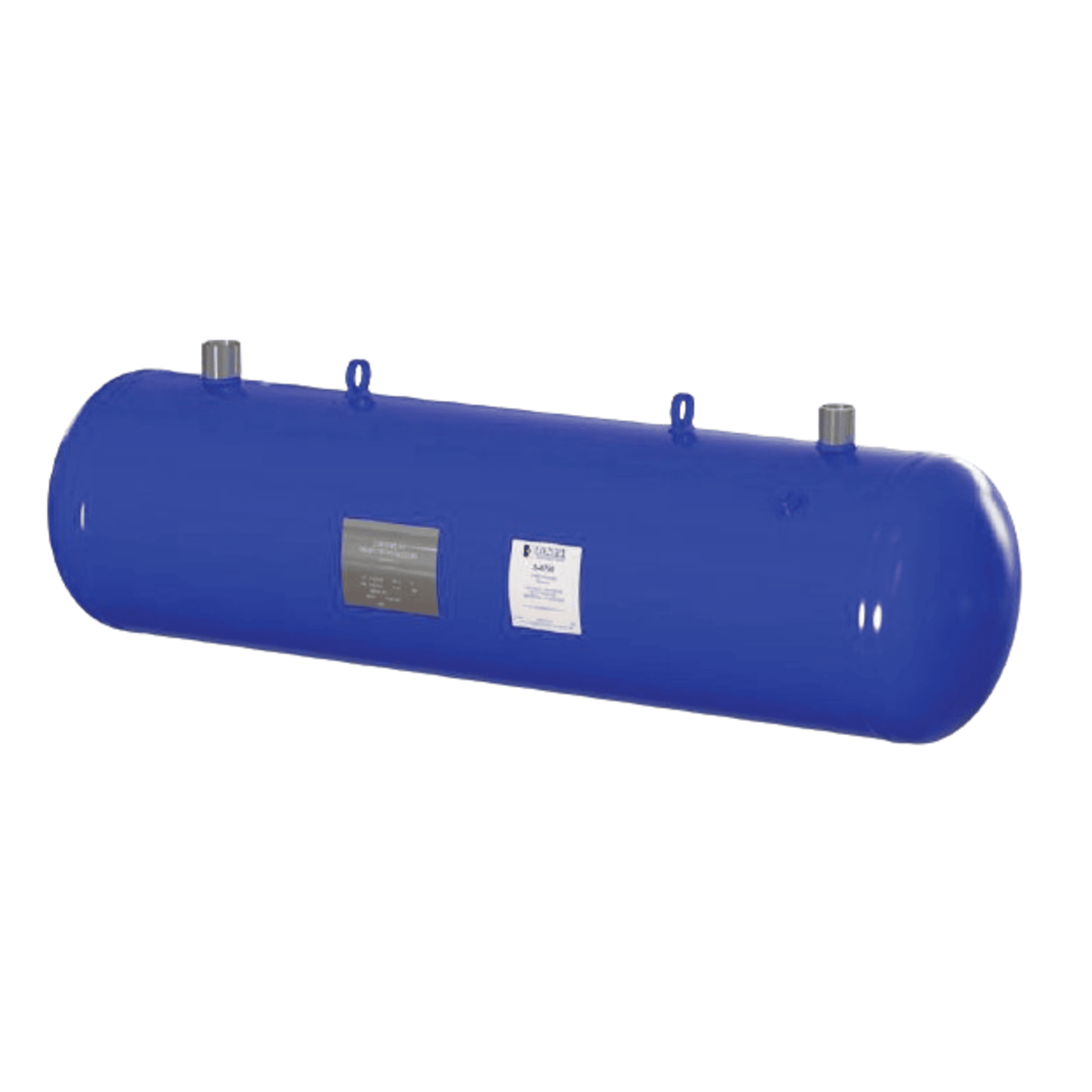

Henry S-8760 Horizontal Suction Line Accumulator
Dimensions: 323.9 mm (Diameter) x 1524.0 mm (Length)
Connections: 1-5/8" ODS Inlet x 1-3/8" ODS Outlet
Configuration: Horizontal ASME-Certified

The Henry S-8760 suction line accumulator is a compact, ASME-certified horizontal unit designed to protect compressors in medium-capacity refrigeration and HVAC systems. Its horizontal layout is ideal for installations with limited vertical clearance, while still providing effective refrigerant separation and oil return.

Key Features:

• ASME-certified horizontal design for safety and code compliance
• 1-5/8" ODS inlet and 1-3/8" ODS outlet for standard piping integration
• Compact, space-saving configuration for flexible installation
• Heavy-duty steel construction with corrosion-resistant finish
• Engineered internal baffling for efficient liquid separation and oil return

The S-8760 is a reliable solution for commercial refrigeration and HVAC systems requiring horizontal installation and certified performance.
