S-8780 - Henry - 323.9 x 2438.4mm - 2-1/8 ODS in-1-3/8 ODS out - Horizontal ASME

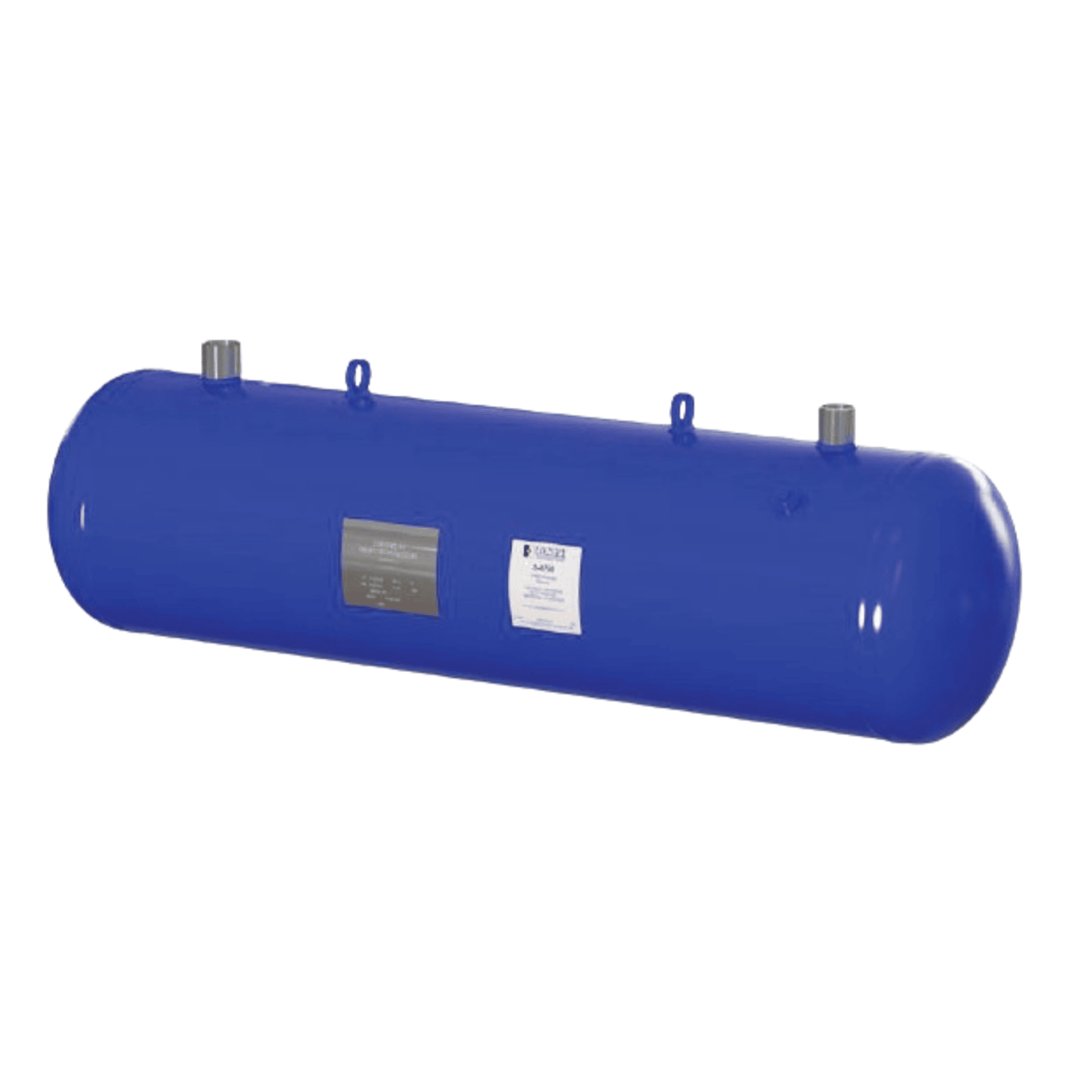

Henry S-8780 Horizontal Suction Line Accumulator
Dimensions: 323.9 mm (Diameter) x 2438.4 mm (Length)
Connections: 2-1/8" ODS Inlet x 1-3/8" ODS Outlet
Configuration: Horizontal ASME-Certified

The Henry S-8780 suction line accumulator is a high-capacity, ASME-certified horizontal unit designed to protect compressors in large-scale refrigeration and HVAC systems. Its extended horizontal design is ideal for installations with height restrictions, while still offering substantial refrigerant holding capacity and efficient liquid separation.

Key Features:

• ASME-certified horizontal construction for code compliance and safety
• 2-1/8" ODS inlet and 1-3/8" ODS outlet for standard piping integration
• Long-body design for increased refrigerant volume and improved separation
• Heavy-duty steel construction with corrosion-resistant finish
• Optimized internal baffling for effective oil return and liquid management
