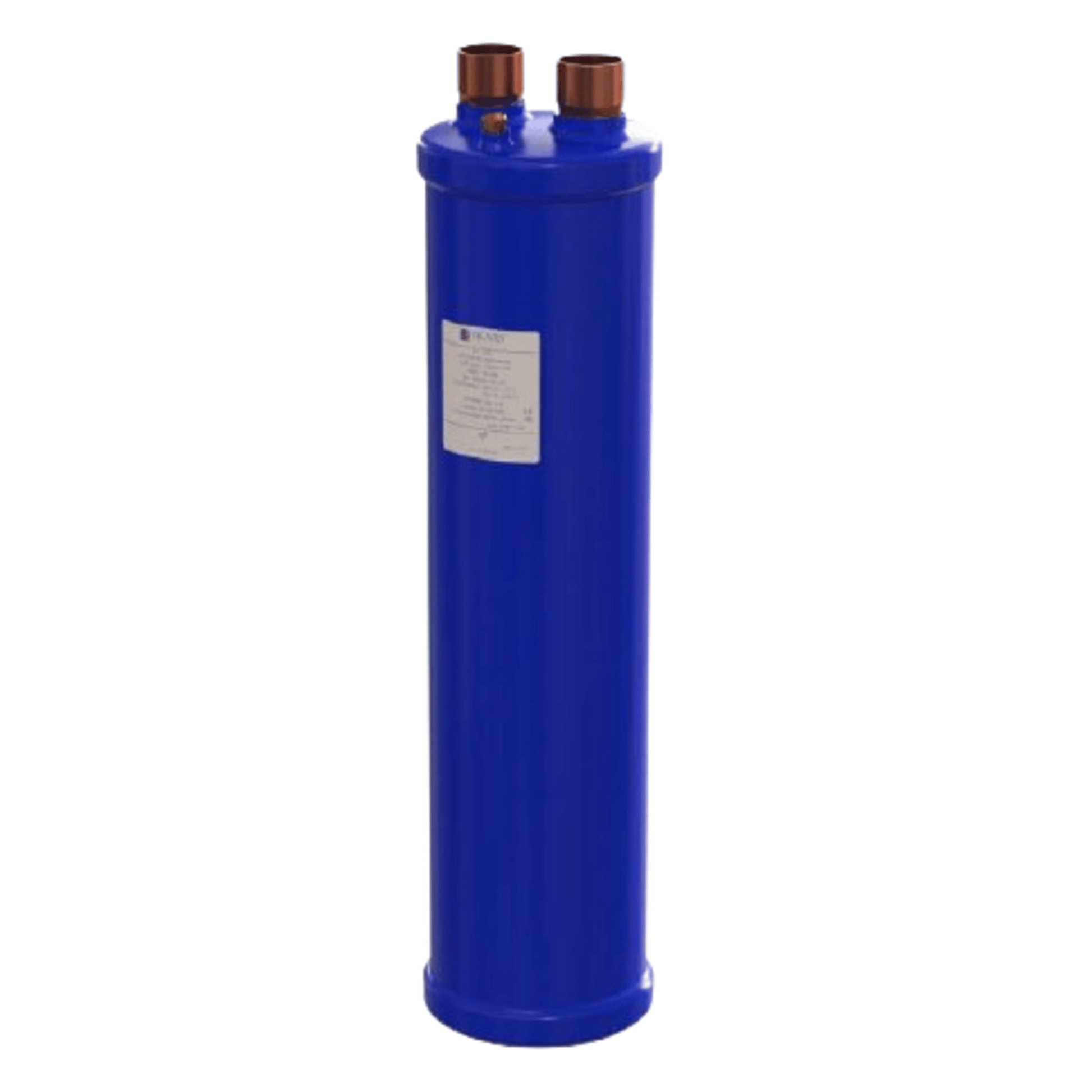

SA-7043-F43 - Henry - 5/8 ODS - 16mm - Accumulators, Suction Line

The Henry SA-7043-F43 is a suction line accumulator designed to protect compressors in HVAC and refrigeration systems by preventing liquid refrigerant and oil from returning through the suction line. Here's a detailed breakdown:

🔧 Technical Specifications

• Model: SA-7043-F43
• Connection Size: 5/8" ODS (Outside Diameter Solder)
• Mounting Orientation: Vertical
• Max Working Pressure: 31 Barg (449.6 PSIg)
• Operating Temperature Range: -30°C to +50°C (-22°F to +122°F)
• Weight: Approx. 28.7 lbs
• Refrigerant Compatibility: HFC, HCFC, and other non-corrosive industrial fluids compatible with steel and copper

⚙️ Functional Features

• Primary Function: Prevents compressor damage by capturing and metering the return of liquid refrigerant and oil.
• Controlled Return: Ensures only vapor returns to the compressor, maintaining system efficiency and proper crankcase oil levels.
• Design Features:
  • ODS copper connections
  • Powder-coated finish
  • Screen-protected orifice
  • Large flow capacity
  • Low pressure drop
• Application: Ideal for systems where sudden liquid return is possible, such as in defrost cycles or heat pump operations
