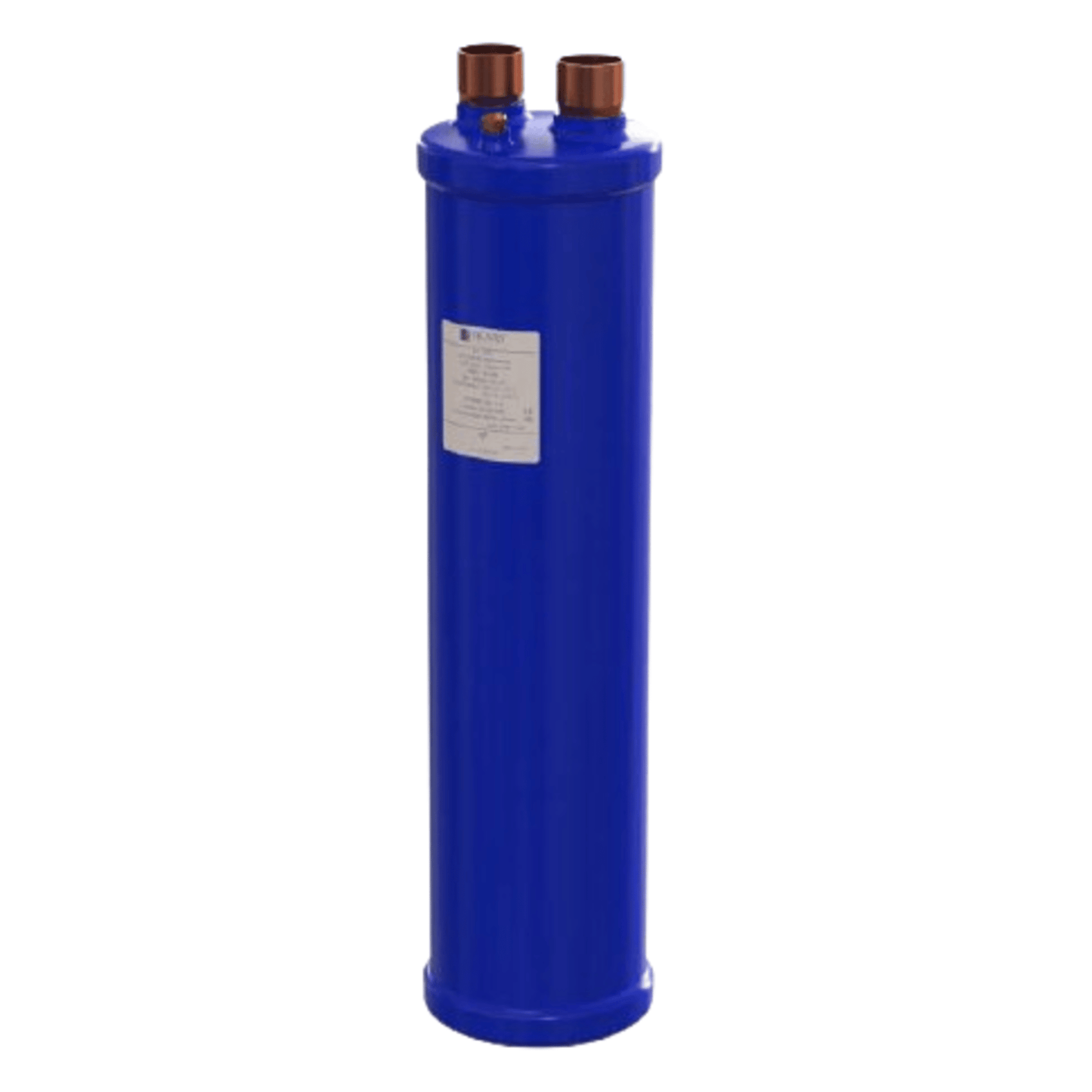

SA-7051-F43 - Henry - 1-1/8 ODS - mm - Accumulators, Suction Line

The Henry SA-7051-F43 is a suction line accumulator designed to protect compressors in refrigeration and air conditioning systems by preventing liquid refrigerant and oil from returning through the suction line. Here's a detailed overview:

🔧 Technical Specifications

• Model: SA-7051-F43
• Connection Size: 1-1/8" ODS (Outside Diameter Solder)
• Mounting Orientation: Vertical
• Series: SA-70XX-F43
• Max Working Pressure: 31 Barg (449.6 PSIg)
• Operating Temperature Range: -30°C to +50°C (-22°F to +122°F)
• Refrigerant Compatibility: CO₂, HCFC, and HFC refrigerants (where materially compatible)
• Certifications: Not CE marked (F43 models), but built to high safety and performance standards

⚙️ Functional Features

• Primary Function: Prevents liquid slugging by capturing and metering the return of liquid refrigerant and oil to the compressor.
• Controlled Liquid Return: Ensures only vapor returns to the compressor.
• Low Pressure Drop: Maintains system efficiency.
• Screen-Protected Orifice: Prevents debris from entering the compressor.
• Optional Heat Exchanger: Available in some models for enhanced performance.
• Mounting: Includes bottom supports; must not be supported by piping
