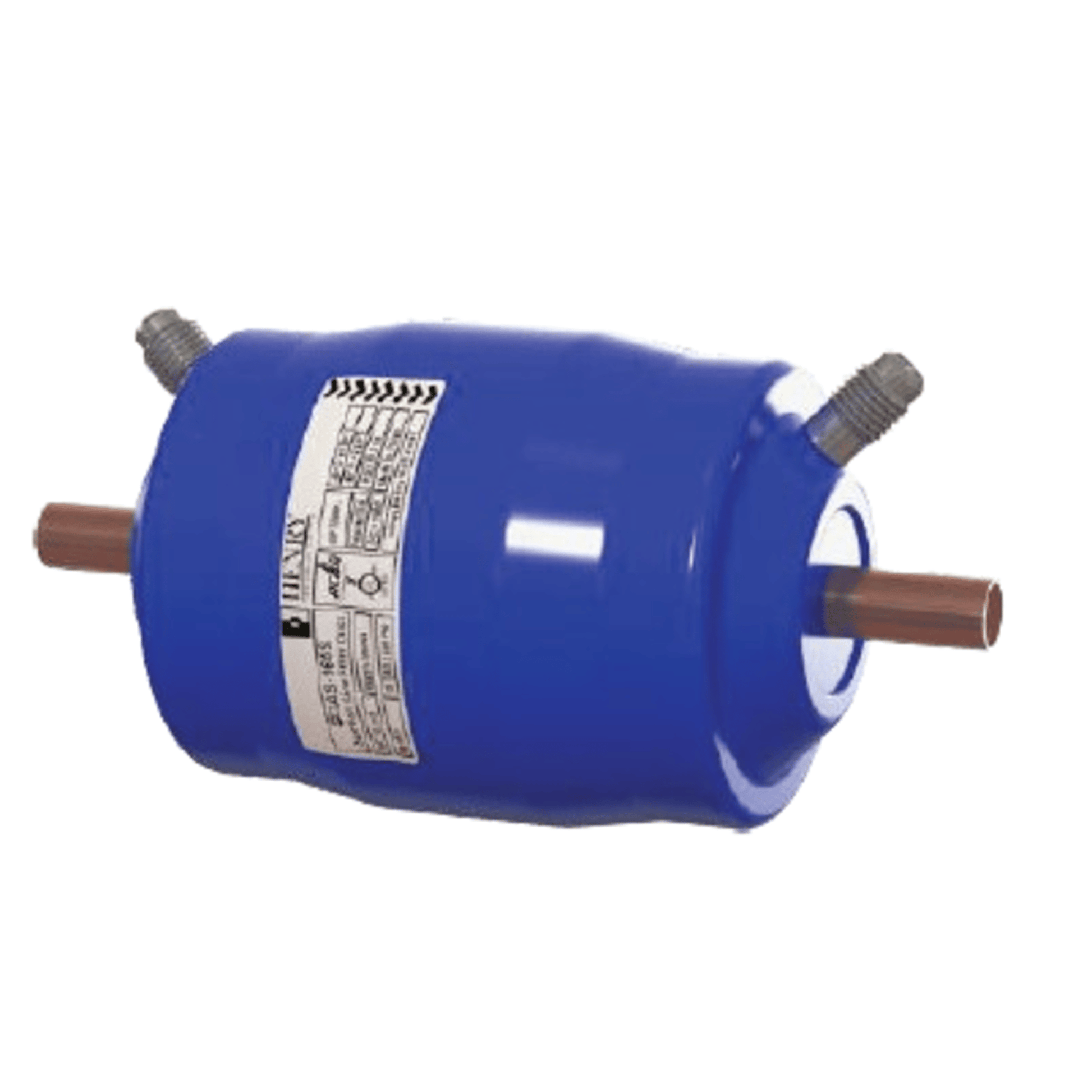

SDAS-165S - Henry - 5/8 ODS - Filter/Driers, Suction Line

Here are the specifications for the Henry SDAS-165S Suction Line Filter/Drier:

Product Overview

• Model: SDAS-165S
• Connection Size: 5/8" ODS (Outside Diameter Solder)
• Application: Suction line filter/drier for HVAC and refrigeration systems

Key Features

• Core Composition: 80% Molecular Sieve and 20% Activated Alumina
• Function: Captures and retains moisture, acids, and solid contaminants to protect compressors and system components
• Filtration:
  • Stainless steel mesh and non-woven polyester filter pad
  • Filters solid particles down to 150 microns
• Construction:
  • Shell: Carbon steel with powder coating for corrosion resistance
  • Connections: Solid copper ODS
  • Internal Components: Galvanized steel plates, steel spring, and Schrader valves for pressure monitoring
• Refrigerant Compatibility: Suitable for HCFC, HFC, and CO₂ refrigerants including R-410A
• Operating Range:
  • Pressure: Up to 650 PSI (45 Bar)
  • Temperature: -40°F to +212°F (-40°C to +100°C)
