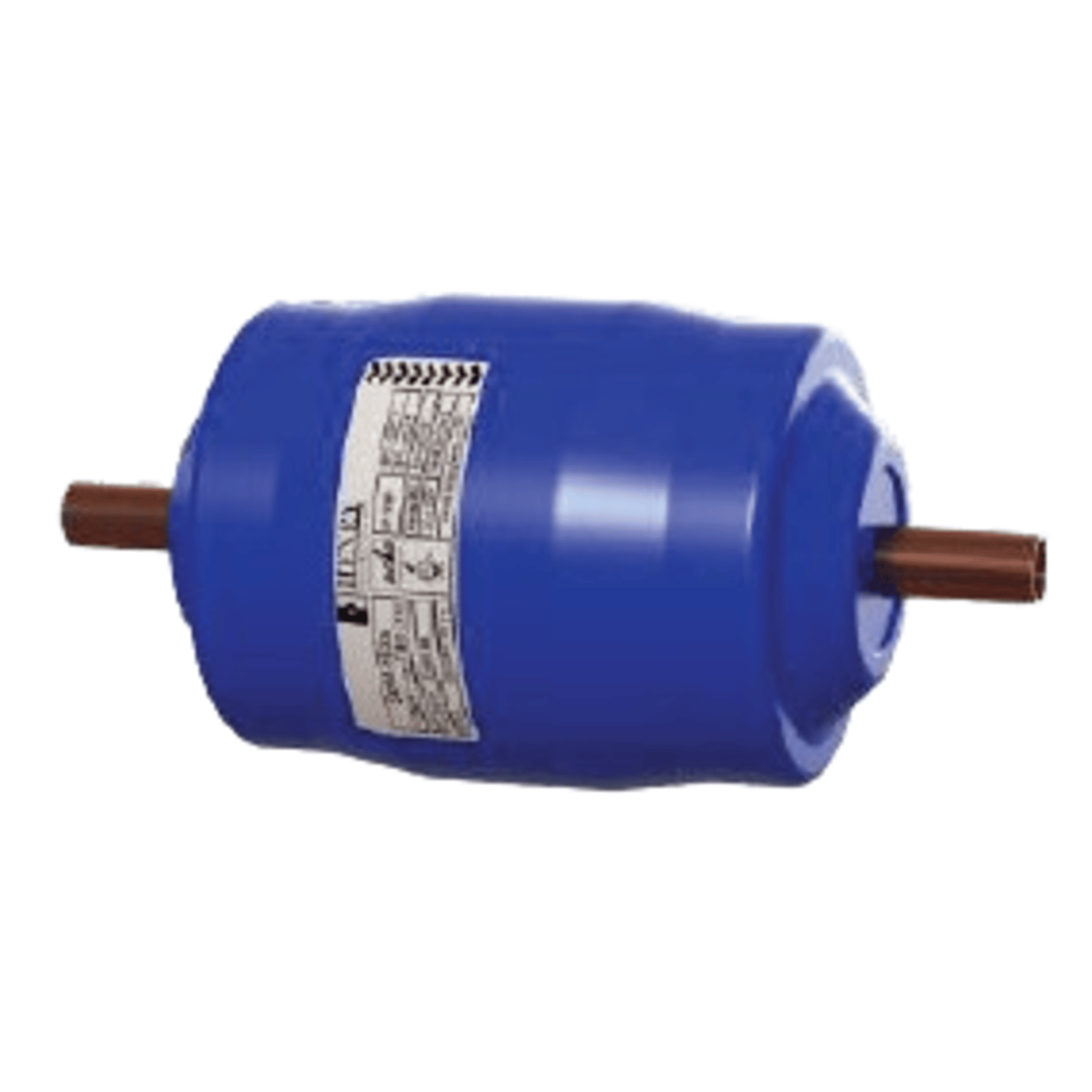

SDM-082S - Henry - 1/4 ODS - 8(CI) - Filter/Driers, Liquid Line, Solder

The Henry SDM-082S is a liquid line filter/drier with 1/4" ODS (solder) connections, designed for use in refrigeration and air conditioning systems. Here's a detailed summary of its features and specifications:

🔧 Product Overview

• Model: SDM-082S
• Connection Type: 1/4" ODS (Outside Diameter Solder)
• Core Type: Solid core with 100% molecular sieve
• Capacity: 8 cubic inches (CI)
• Function: Removes moisture, acid, and solid contaminants from refrigerant lines

📐 Technical Specifications

• Maximum Working Pressure: 45 bar (652.6 PSIg)
• Operating Temperature Range: -40°C to +100°C (-40°F to +212°F)
• Refrigerant Compatibility: A2L, CO₂, HC, HCFC, HFC, and HFO refrigerants (where materially compatible)
• Filtration: Down to 150 microns
• Construction:
  • Solid copper solder connections
  • Powder-coated finish for corrosion resistance
