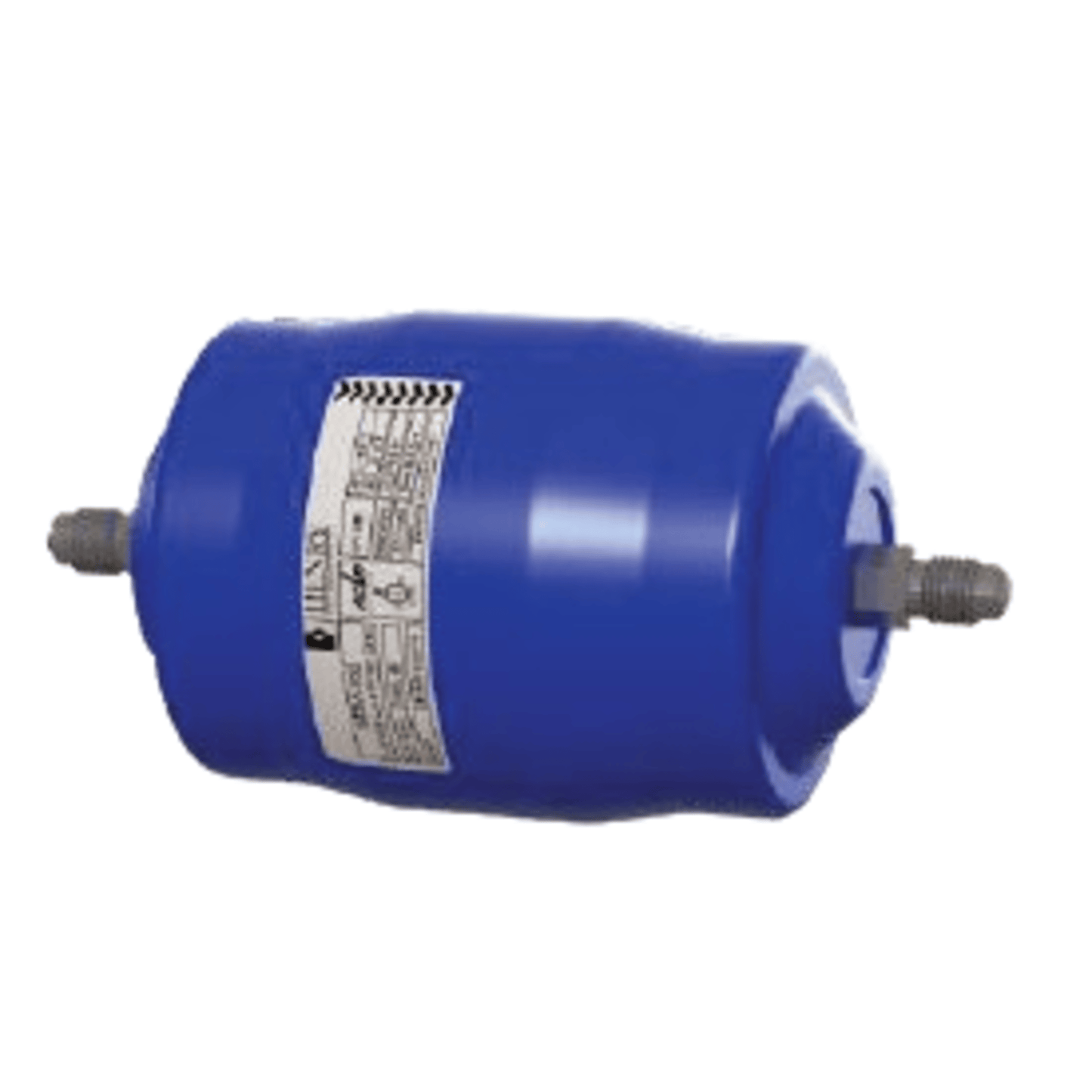

SDM-084 - Henry - 1/2 Flare - 8(CI) - Filter/Driers, Liquid Line, Flare

The Henry SDM-084 is a liquid line filter/drier with a 1/2" flare connection, designed for use in refrigeration and air conditioning systems. Here's a detailed breakdown of its specifications:

🔧 Product Overview

• Model: SDM-084
• Connection Type: 1/2" SAE Flare
• Core Type: Solid core with 100% molecular sieve desiccant
• Capacity: 8 cubic inches (CI)
• Function: Removes moisture, acid, and solid contaminants to protect compressors and other system components

📐 Technical Specifications

• Maximum Working Pressure: 650 PSI (45 bar)
• Operating Temperature Range: -40°F to +212°F (-40°C to +100°C)
• Refrigerant Compatibility: HCFC, HFC, CO₂, and R-410A refrigerants
• Filtration: Solid particle filtration down to 150 microns
• Construction:
  • Plated steel SAE flare connections
  • Powder-coated finish for UV and corrosion resistance
  • 1000-hour salt spray tested to ASTM B117 standards
