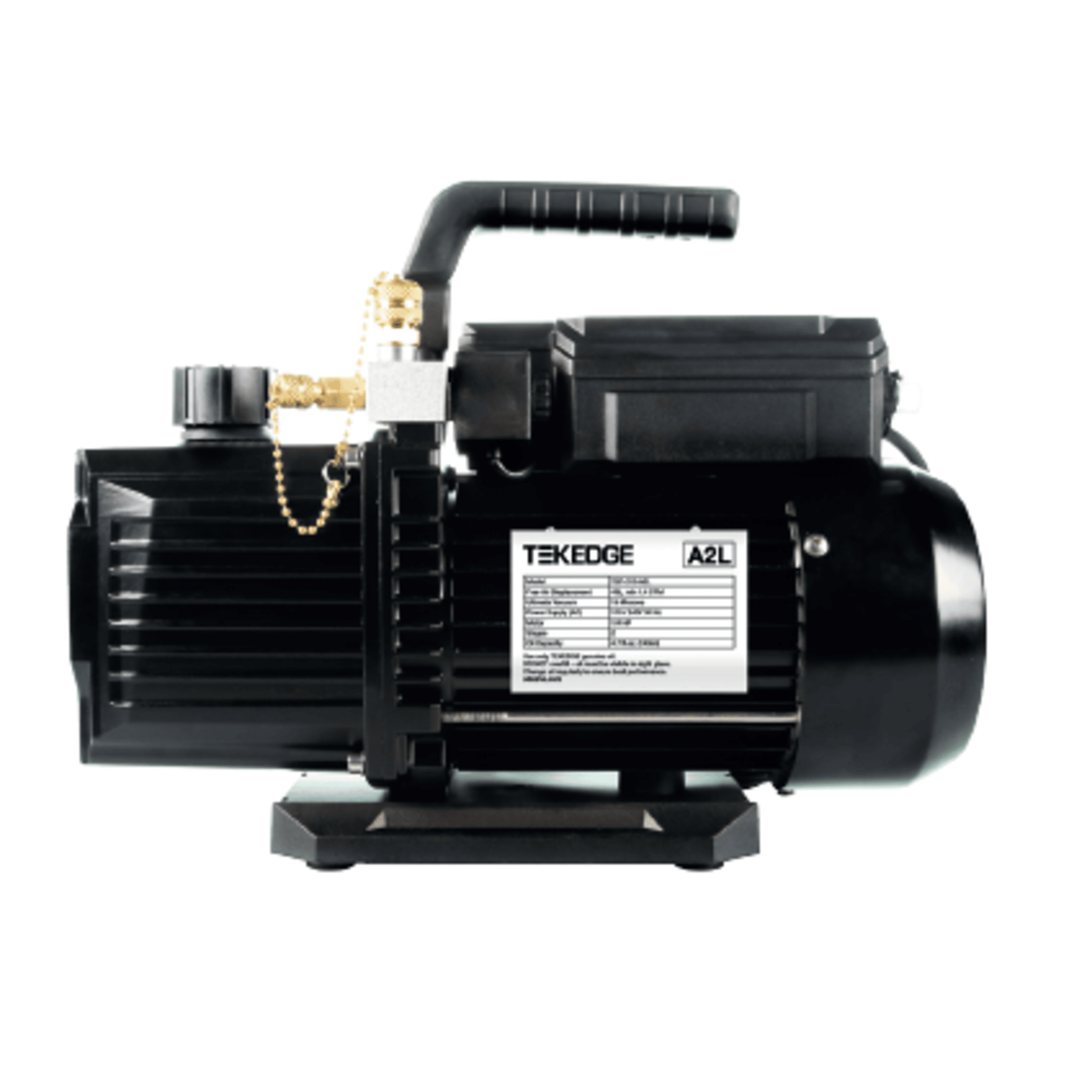

TEP-141-A2L - TekEdge - 5 CFM A2L rated, 2-stage dual voltage vacuum pump

Here are the specifications and features of the TEP-141-A2L TekEdge Elite Flow Vacuum Pump, a versatile and reliable tool for HVAC/R professionals working with A2L refrigerants:

🔧 TEP-141-A2L TekEdge Vacuum Pump Overview

• Air Flow Capacity: 5 CFM — suitable for residential, automotive, and light commercial systems
• Pump Type: 2-stage oil-sealed rotary vane — delivers deeper vacuum and faster evacuation
• Voltage: Dual voltage (100–240V AC, 50/60Hz) — automatic adjustment for global use
• Refrigerant Compatibility: A2L rated — safe for use with low flammability refrigerants
• Spark Proof: Spark-proof switches — enhances safety in flammable environments
• Solenoid Valve: Integrated for easy control and operation
• Oil Drain: Easy-access design for quick maintenance
• Power Lead: Hard-wired 16.4 ft (5m) cable — provides extended reach
• Dimensions: 14.5” x 9.5” x 13” (370mm x 245mm x 325mm)
• Weight: 19 lbs (8.6 kg)

🧰 Applications

This model is part of the Elite Flow Series A2L/A3 and is ideal for technicians needing a mid-capacity vacuum pump that meets modern refrigerant safety standards
