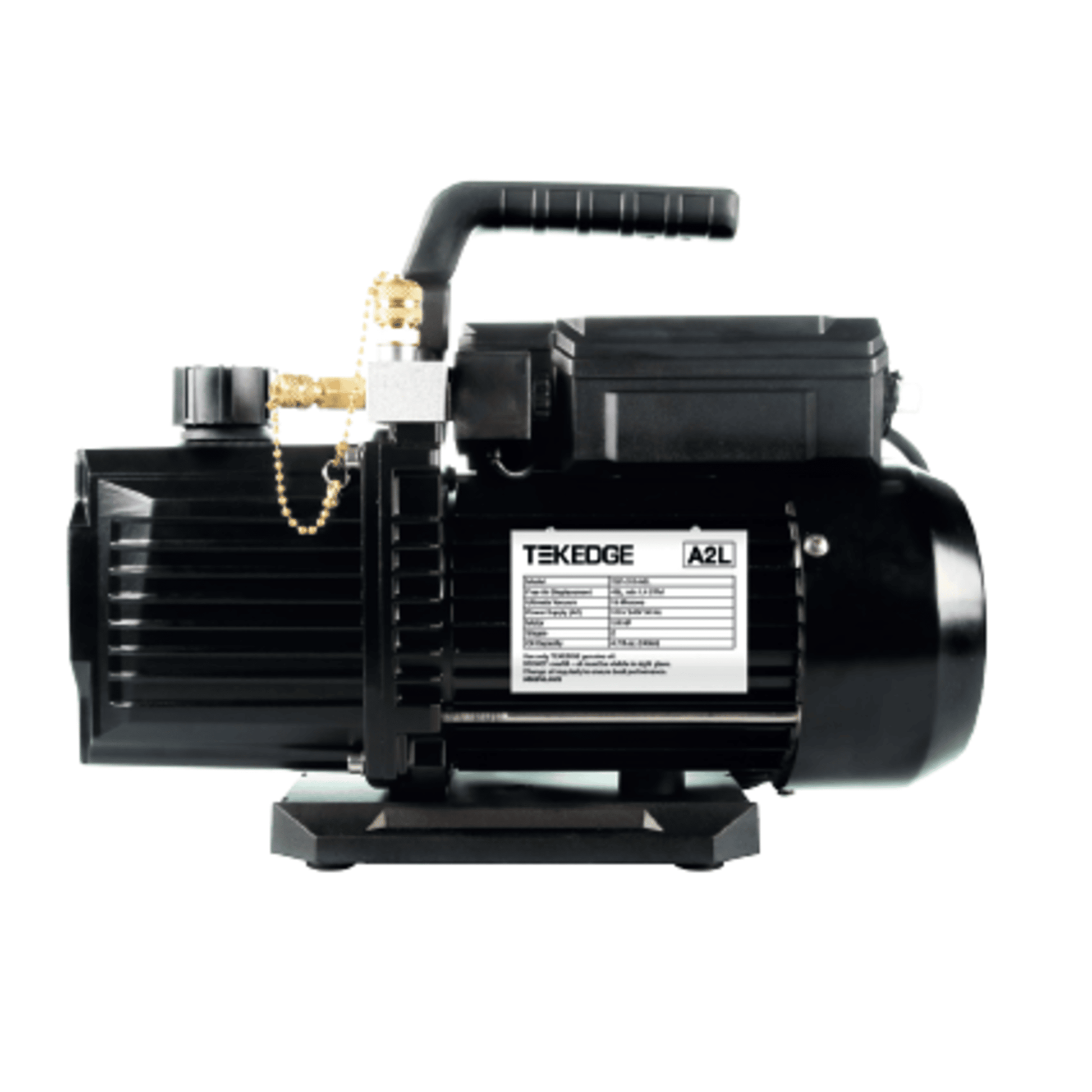

TEP-231-A2L - TekEdge - 9 CFM A2L rated, 2-stage dual voltage vacuum pump

TEP-231-A2L TekEdge Vacuum Pump Overview

• Air Flow Capacity: 9 CFM — suitable for large commercial refrigeration and AC systems
• Refrigerant Compatibility: A2L rated — safe for use with low flammability refrigerants
• Pump Type: 2-stage oil-sealed rotary vane — ensures deeper vacuum and faster evacuation
• Voltage: Dual voltage (100–240V AC, 50/60Hz) — automatic adjustment for global use
• Spark Proof: Spark-proof switches — enhances safety in flammable environments
• Solenoid Valve: Integrated for easy control and operation
• Oil Drain: Easy-access design for quick maintenance
• Power Lead: Hard-wired 16.4 ft (5m) cable — provides extended reach
• Dimensions: 14.5” x 9.5” x 13” (370mm x 245mm x 325mm)
• Weight: 24.5 lbs (11.1 kg)

🧰 Applications

Ideal for HVAC/R technicians needing a high-capacity, safe, and reliable vacuum pump for evacuating refrigerant systems — especially those using A2L and A3 refrigerants
