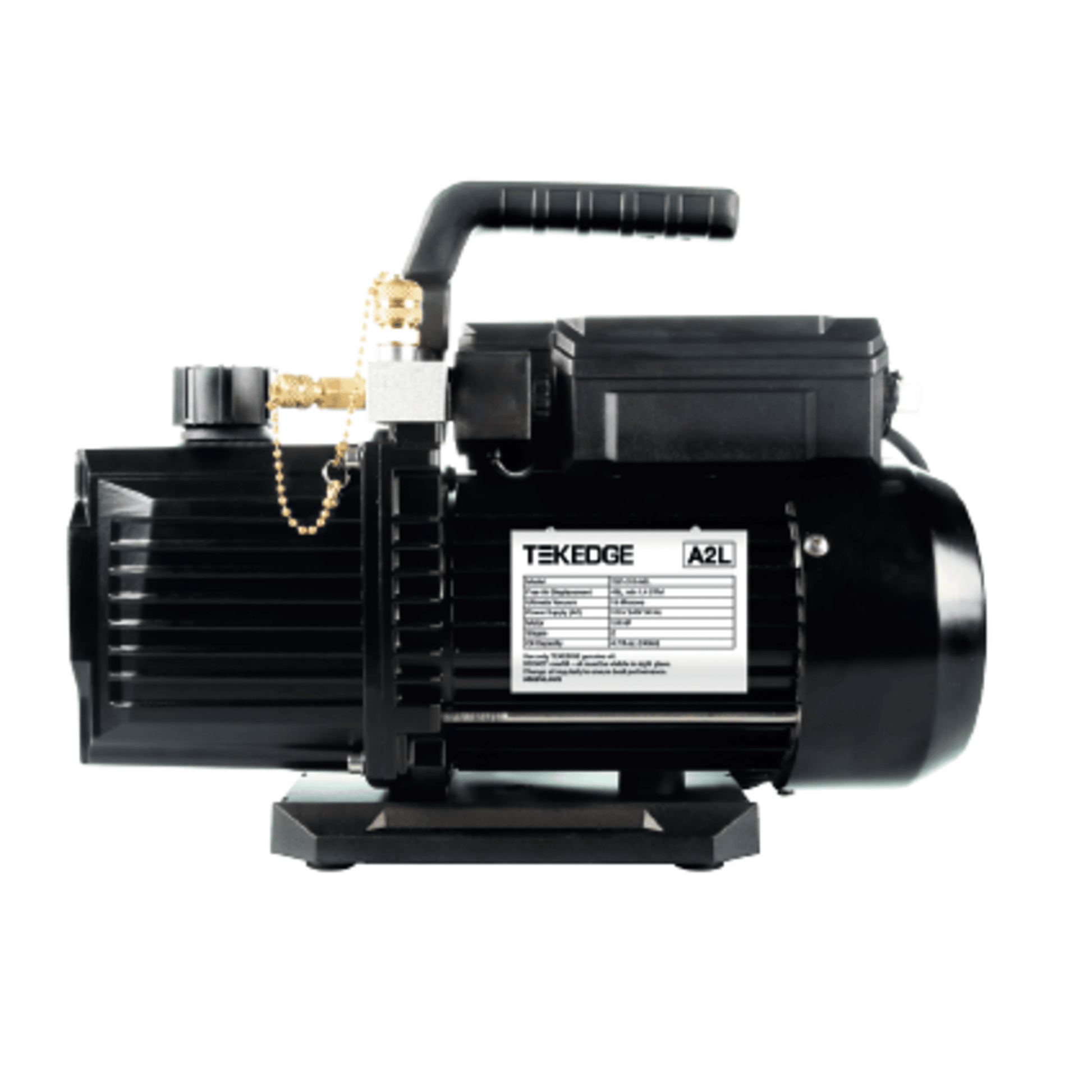

TEP-310-A2L - TekEdge - 1 CFM A2L rated, 2-stage dual voltage vacuum pump

The TEP-310-A2L TekEdge Elite Flow vacuum pump is a compact, high-performance tool designed for HVAC/R professionals working with A2L refrigerants. Here's a detailed overview of its features and specifications:

🔧 Key Features

• Air Flow Capacity: 1 CFM (Cubic Feet per Minute)
• Design: 2-stage oil-sealed rotary vane mechanism for enhanced vacuum performance
• Voltage Compatibility: Dual voltage (100–240V AC, 50/60Hz) for flexible use
• Spark Proof: Equipped with spark-proof switches for safe operation in sensitive environments
• Solenoid Valve: Allows easy control and operation
• Oil Drain: Easy access oil drain for quick maintenance
• Power Lead: Hard-wired 16.4 ft (5m) lead for extended reach
• Warranty: 2-year manufacturer warranty
• Dimensions: Approx. 14.5” x 9.5” x 13” (370mm x 245mm x 325mm)
• Weight: 19 lbs (8.6 kg)
• Application Suitability: Ideal for evacuating domestic, automotive, and light commercial refrigeration and AC systems

This pump is part of the Elite Flow Series A2L/A3 by C&D Valve, which is specifically designed to handle modern refrigerants safely and efficiently.
