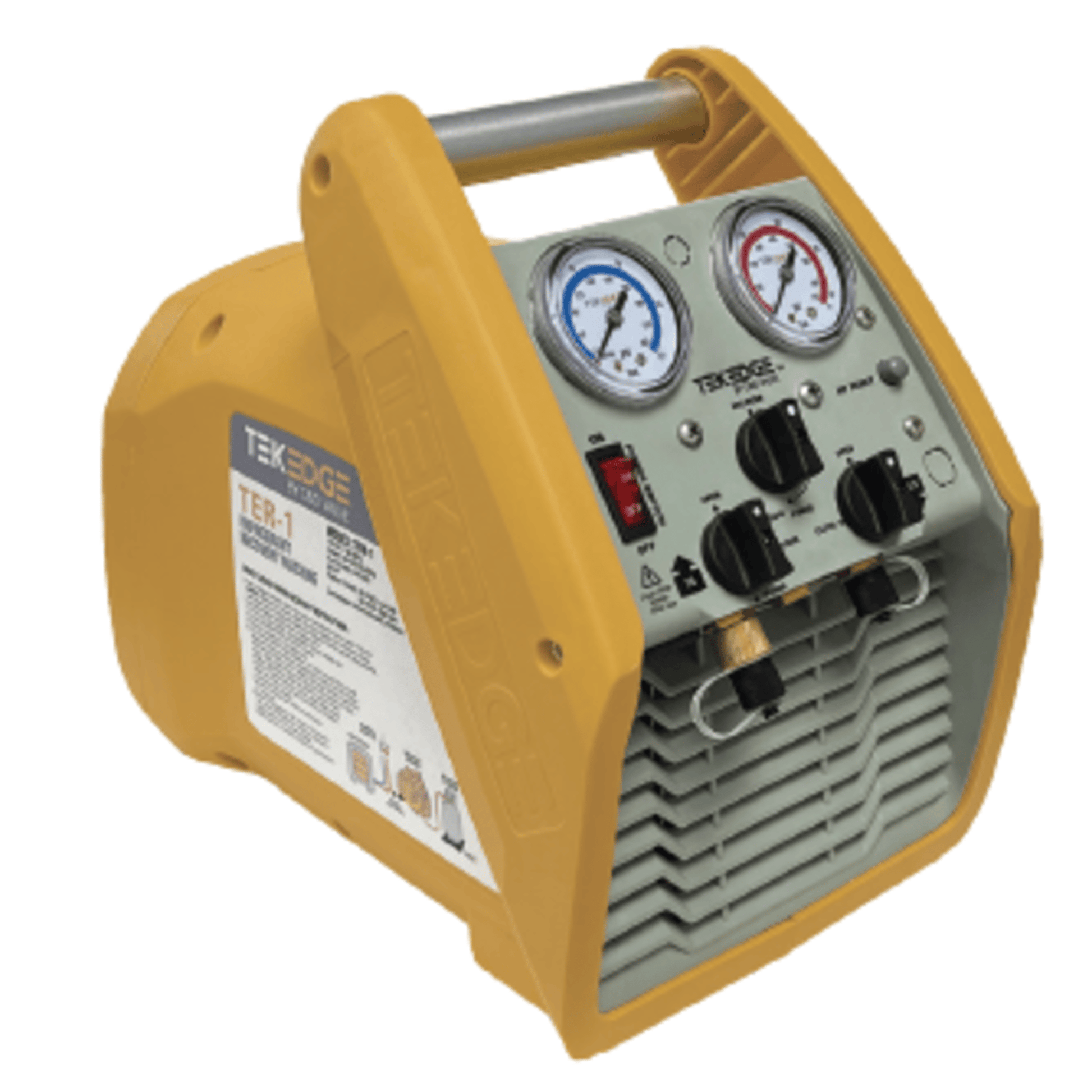

TER-1 - TekEdge - refrigerant recovery machine, 3/4 HP

Here are the full specifications and features of the TER-1 TekEdge Refrigerant Recovery Machine, a compact and efficient solution for HVAC/R professionals:

⚙️ TER-1 TekEdge Recovery Machine Overview

• Motor Power: 3/4 HP brushless DC motor — delivers high torque and efficient performance
• Compressor Type: Oil-less, 1-cylinder wobble piston design — clean and maintenance-free operation
• Voltage Compatibility: Standard AC input (typically 120V)
• Weight: 19 lbs (8.6 kg) — lightweight and portable
• Dimensions: 14.5” x 9.5” x 13” (370mm x 245mm x 325mm)
• Recovery Modes: Direct liquid or vapor recovery positions on the IN valve
• Refrigerant Compatibility: Certified for R410A and compliant with AHRI740 standard
• Safety Features:
  • Manual high-pressure cutout switch at 550 PSIG
  • Spark-proof switch
  • Built-in electronic motor protection
  • 6 ft (1.8m) power cord
• Monitoring: Highly visible low and high side pressure gauges
• Additional Features:
  • Purge valves to prevent cross-contamination
  • Serviceable inlet filter screen
  • Sealed crankcase with equalizer channel
  • Serviceable piston seals

🧰 Applications

Ideal for HVAC/R technicians needing a lightweight, reliable recovery unit for residential and light commercial systems. Its oil-less design and compact form factor make it especially convenient for field use.
