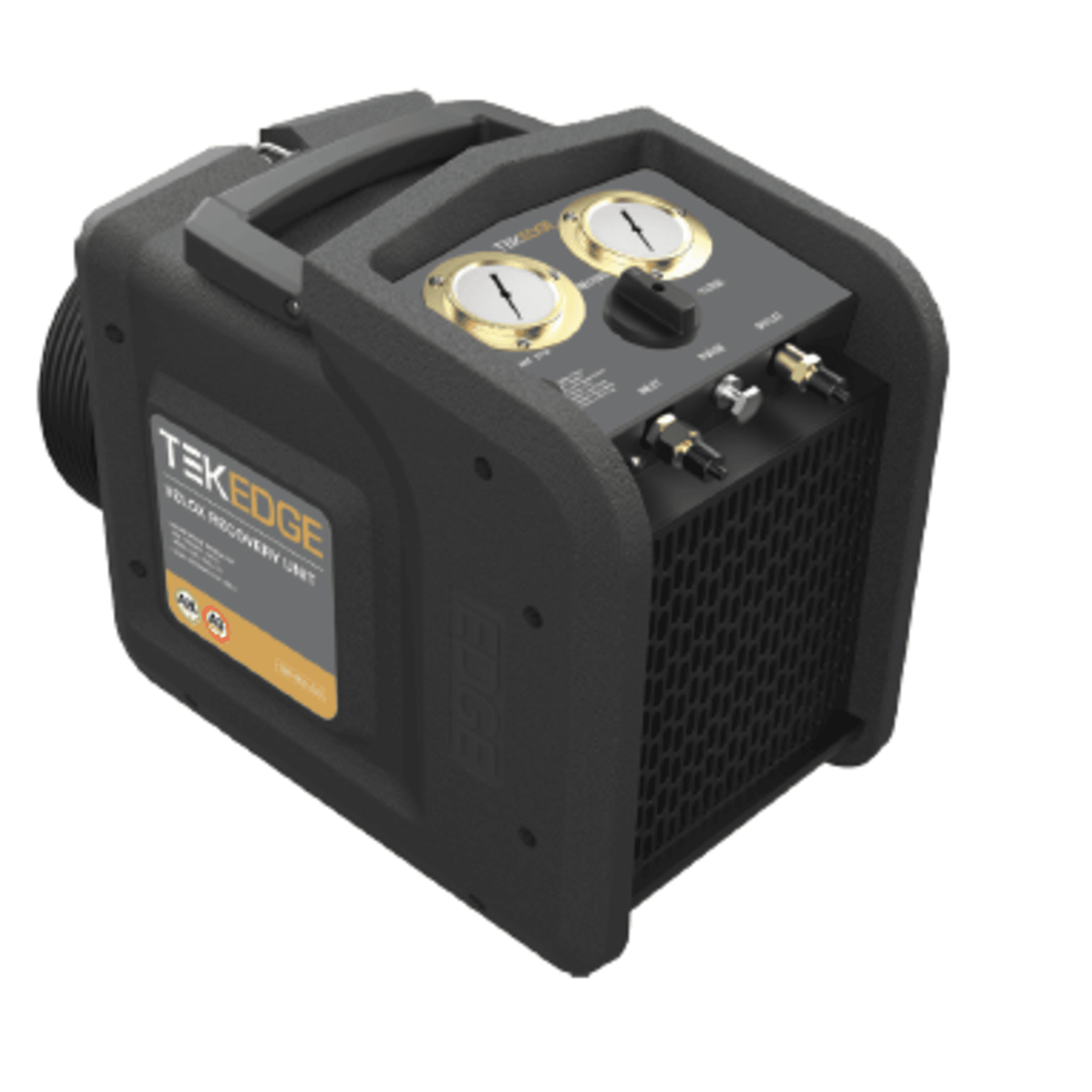

TER-100-A2L - TekEdge - Velo-X refrigerant recovery machine, 1 1/4 HP DC motor, 2 cylinder

Here are the full specifications and features of the TER-100-A2L TekEdge Velo-X Refrigerant Recovery Machine, designed for safe and efficient refrigerant recovery in HVAC/R applications:

⚙️ TER-100-A2L TekEdge Velo-X Recovery Machine Overview

• Motor Power: 1 1/4 HP brushless DC motor
• Speed Range: Variable speed operation from 1500 to 3000 RPM
• Compressor Type: 2-cylinder, oil-less reciprocating, air-cooled
• Voltage Compatibility: Universal dual voltage (100–240V AC, 50/60Hz)
• Max Current Draw: 12.0 amps
• High Pressure Cutout: Manual reset at 550 PSIG
• Operating Temperature Range: 32°F to 120°F (0°C to 49°C)
• Dimensions: 14.5” x 9.5” x 13” (370mm x 245mm x 325mm)
• Weight: 24.5 lbs (11.1 kg)
• Safety Features:
  • Spark-proof switch
  • 16.4 ft (5m) hard-wired cable
  • UL-verified AHRI740-2016 performance compliance

🧪 Refrigerant Compatibility

• Compatible with:
  • CFC, HCFC, HFC, HFO refrigerants
  • Class A1, A2, A2L, and A3 refrigerants
