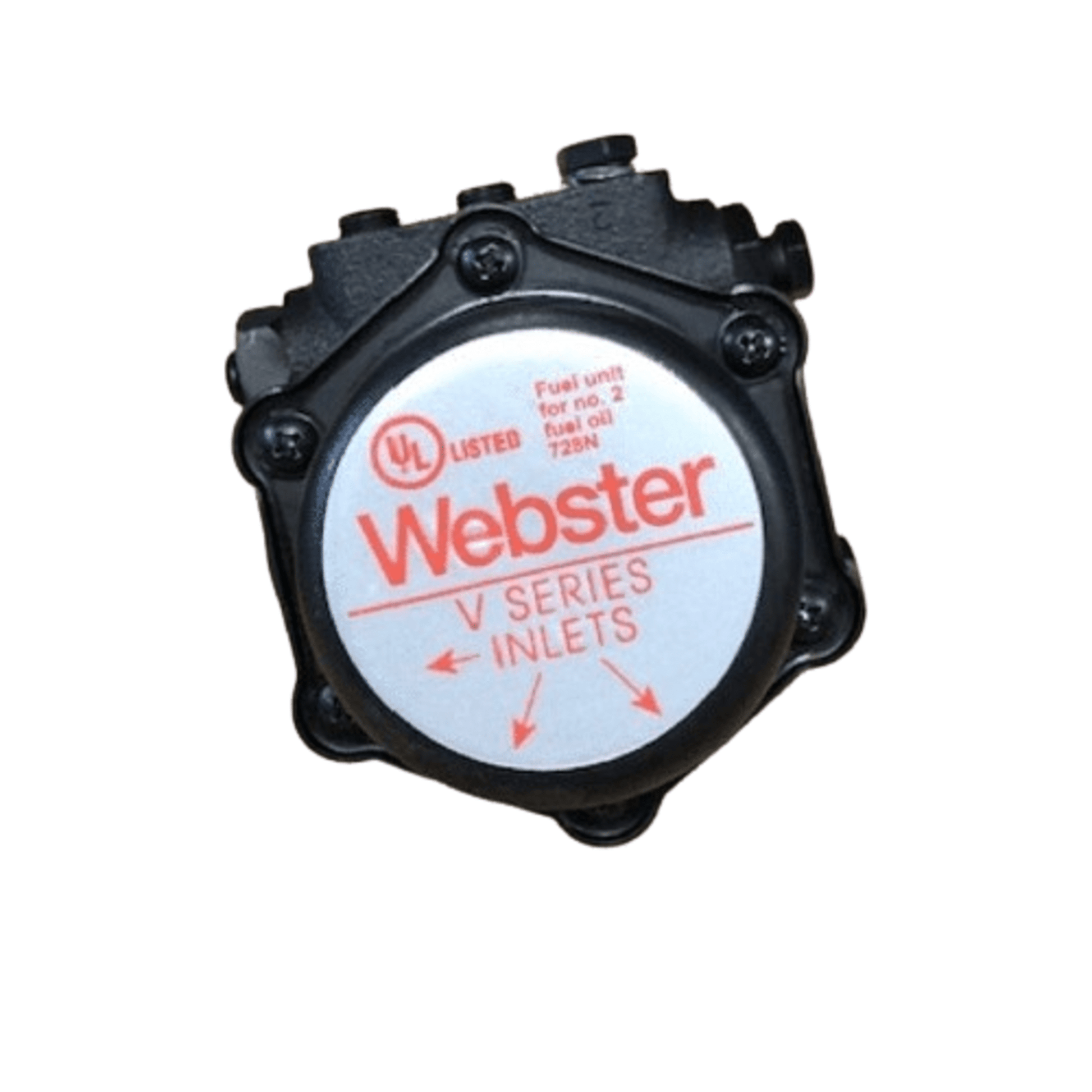

V024D-4DO20 - Webster - V024D-4DO20 Single Stage Pump

• Manufacturer: Webster
• Model / MPN: V024D-4DO20
• Type: Single stage fuel oil pump (V‑Series fuel unit)
• Rated pressure: 300 PSI
• Rated flow (firing rate): 60/140 GPH @ 300 PSI
• Speed rating: 1725/3450 RPM
• Rotation (shaft end): CW/R
• Gear set capacity: 110/240 GPH
• Listings: UL listed

Applications / Compatibility

• For commercial & industrial oil‑fired burners requiring V‑Series performance at 300 PSI and higher delivery rates.
• Best-fit when the job calls for V024D-4DO20 matching CW/R rotation, 1725/3450 RPM, and 60/140 GPH @ 300 PSI to avoid misapplication.
• V‑Series single stage units support firing rates up to 260 GPH and inlet vacuum up to 10" Hg (system-dependent).
