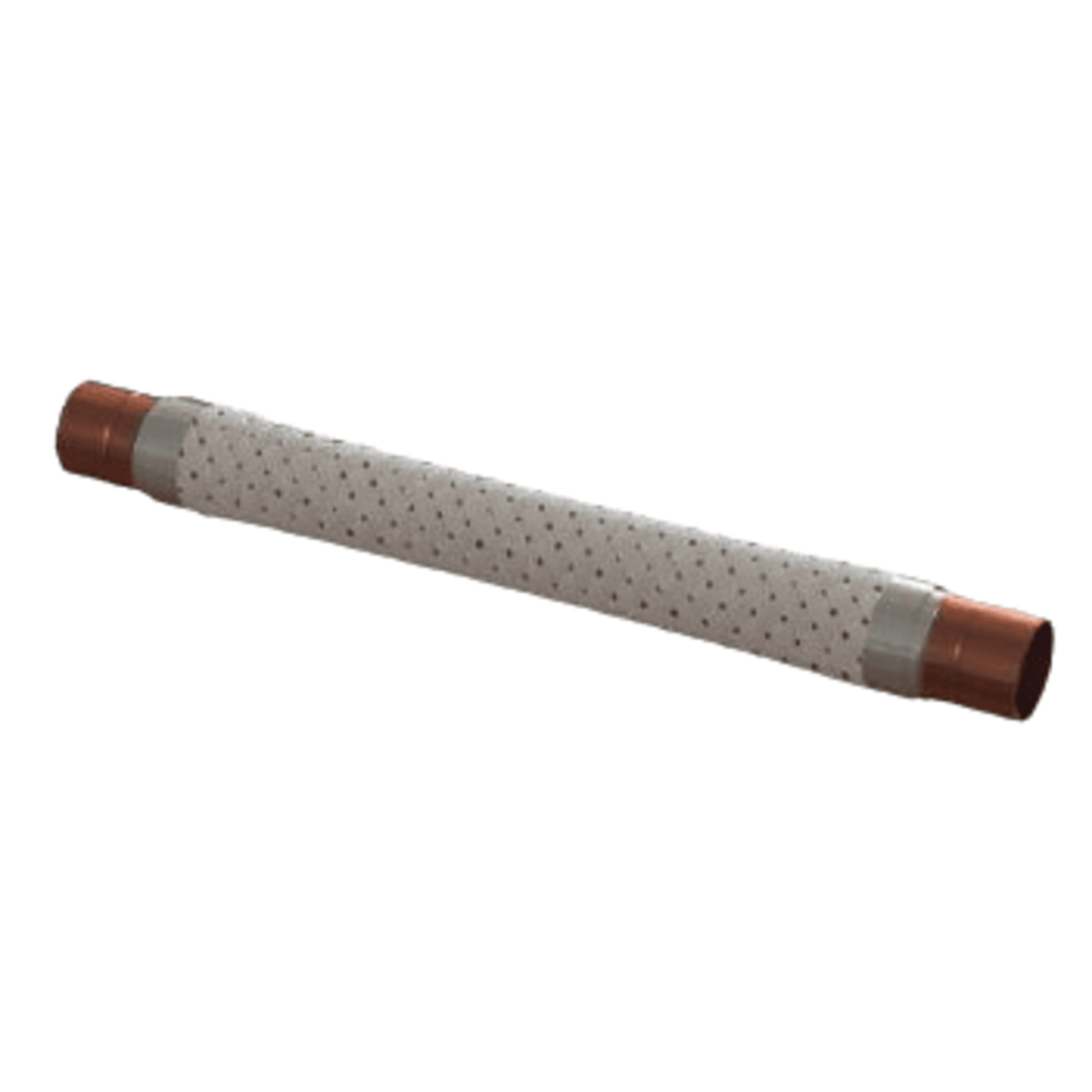

VS-3-5/8 - Henry - Vibration Eliminator - All SS 3-5/8 ODS

The Henry VS-3-5/8 is a vibration eliminator with 3-5/8" ODS (solder) connections, designed for large-capacity refrigeration and air conditioning systems. Here's a detailed breakdown of its specifications:

Product Overview

• Model: VS-3-5/8
• Connection Size: 3-5/8" ODS (Outside Diameter Solder)
• Series: VS (All Stainless Steel)

Key Features

• Construction:
  • All stainless steel: hose, braid, and ferrules
  • TIG welded joints — no need to wet-rag during installation
• Function: Absorbs compressor vibration to reduce stress and potential damage to system components and pipework
• Installation: Suitable for both suction and discharge lines
• Refrigerant Compatibility: HCFC, HFC, CO₂, and other compatible refrigerants

Technical Specifications

• Maximum Working Pressure: 25 bar (363 PSIG)
• Operating Temperature Range: -40°C to +120°C (-40°F to +248°F)
• Leak Testing: Helium leak tested
