22R221D-5C14 - Webster - Two Stage Pump

22R221D-5C14 - Webster - Two Stage Pump

Low stock

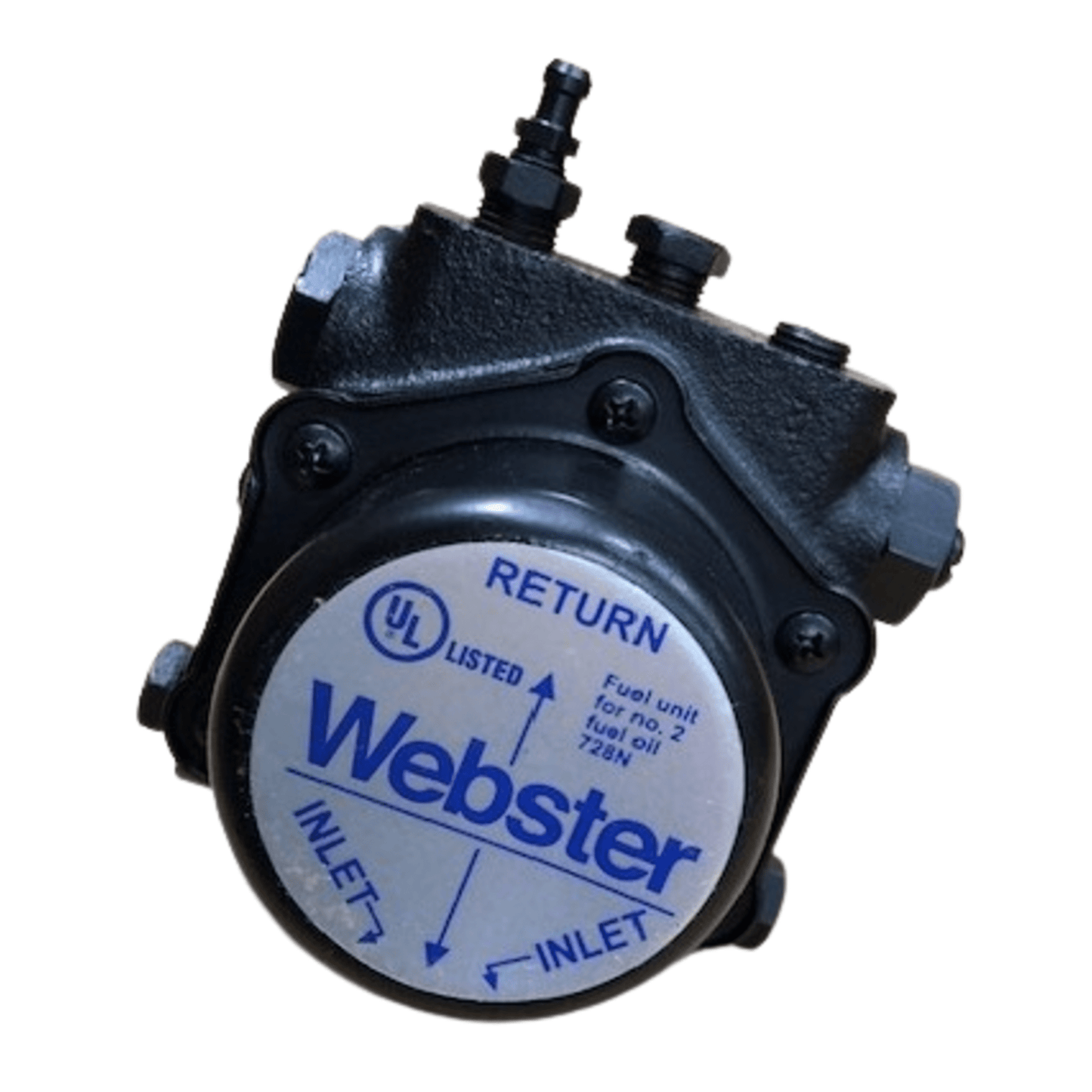

22R221D-5C14 – Webster Two Stage Pump (1 EA)

Product Description

The Webster 22R221D-5C14 Two Stage Pump is a high‑speed R Series fuel oil pump engineered for reliable fuel delivery and stable pressure control in commercial and light industrial oil‑fired heating systems. Its two‑stage design provides improved priming and lift, making it well suited for two‑pipe installations and systems with longer fuel runs.
Operating at 3450 RPM, this pump delivers 27 GPH at 100 PSI with pressure capability up to 300 PSI, ensuring consistent burner performance across demanding operating conditions. The pump features clockwise (CW) rotation from the shaft end with a right‑side nozzle location, corresponding to a D‑style configuration, allowing proper compatibility with specific burner and motor setups.
The 22R221D‑5C14 incorporates Webster’s self‑cleaning rotary fuel filter, reducing maintenance by preventing contaminants from entering internal components. Double‑lip seals provide enhanced leak protection and lower friction than face‑type seals, extending service life in continuous‑duty applications. Built with 1/4″ NPTF inlet and outlet connections, this pump integrates easily into existing oil heating systems.
Compatible with #1 and #2 fuel oil, the Webster 22R221D‑5C14 is a trusted choice for HVAC professionals servicing commercial burners, boilers, and high‑duty heating equipment.
Key Features
  • Two‑stage R Series fuel oil pump
  • 27 GPH capacity at 100 PSI
  • 3450 RPM operation
  • Pressure capability up to 300 PSI
  • Clockwise (CW) rotation with right‑side nozzle (D‑style)
  • Self‑cleaning rotary fuel filter
  • Double‑lip seals for long service life
  • 1/4″ NPTF inlet and outlet connections
  • Designed for commercial and light industrial heating systems
