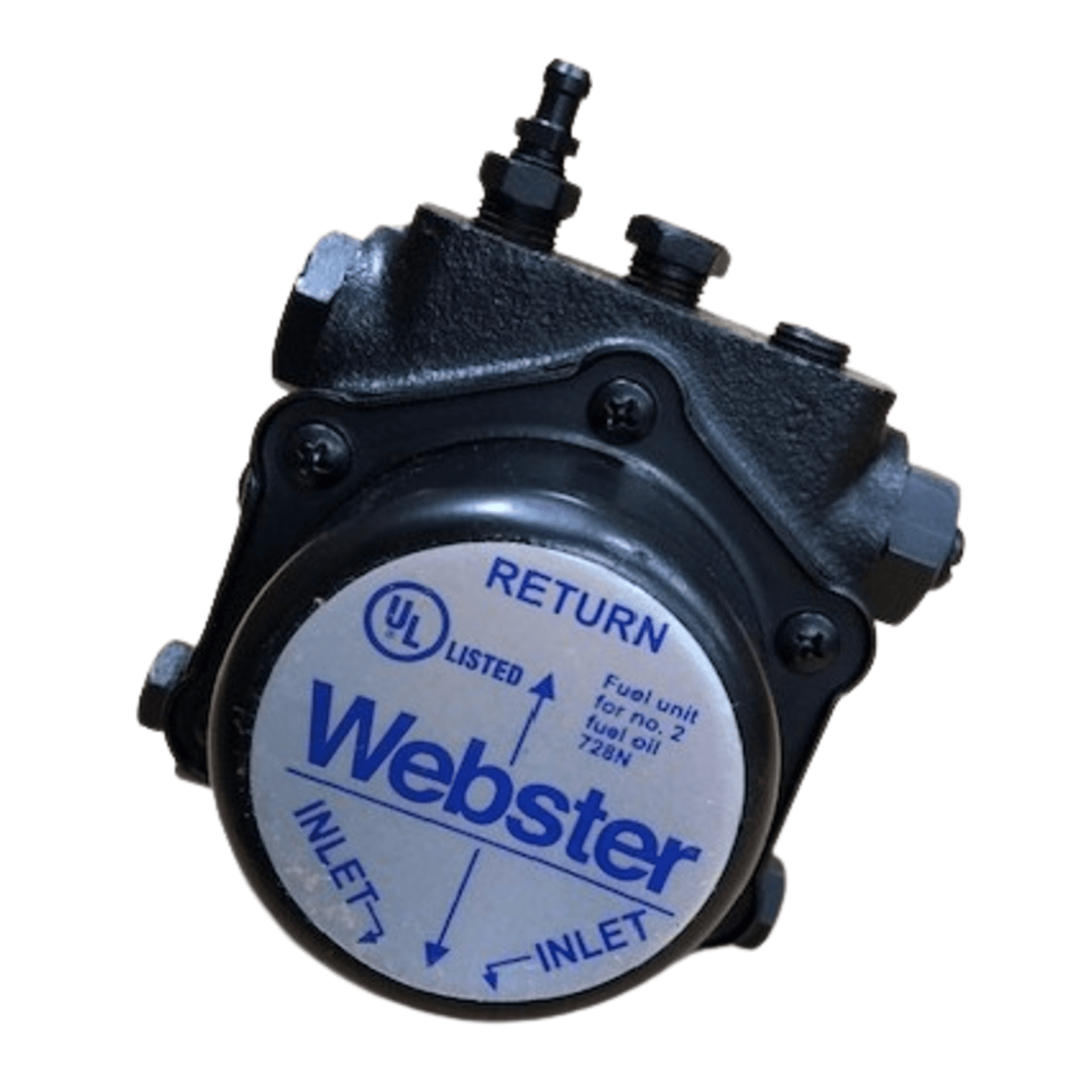

22R623C-5BE14 - Webster - Two Stage Pump

The Webster 22R623C-5BE14 is a two-stage fuel oil pump from the R Series, designed for high-performance applications requiring consistent fuel delivery at elevated pressures. Here's a detailed overview:

🔧 Technical Specifications

• Model: 22R623C-5BE14
• Series: R Series
• Pump Type: Two-stage
• Speed: 3450 RPM
• Rotation / Nozzle Location: Counterclockwise (CCW) from shaft end / Left side
• Capacity: 56 GPH (Gallons Per Hour)
• Maximum Pressure: 300 PSI
• Inlet/Outlet Connection: 1/4" NPTF
• Configuration: C-style body
• Weight: Approx. 9 lbs

⚙️ Features

• Rotary Filter: Reduces the need for frequent maintenance by filtering fuel before it enters the pumping chamber.
• Double Lip Seals: Provide enhanced leak protection and lower friction compared to face-type seals.
• High Pressure Capability: Suitable for demanding burner systems and industrial heating applications.

This pump is ideal for systems that require high pressure and reliable two-pipe operation, such as commercial oil burners or industrial heating units
