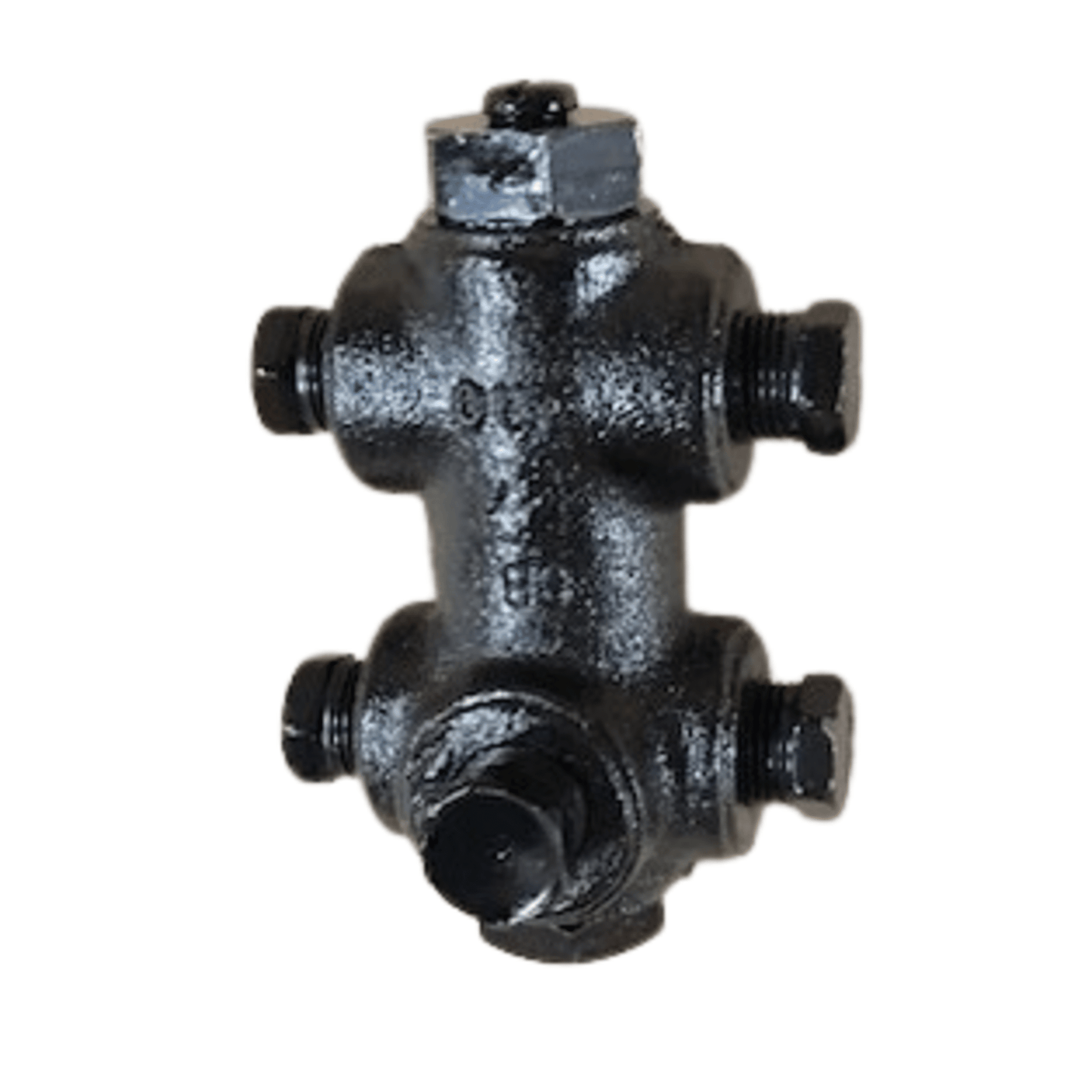

RV2002 - Webster - RV2002, Regulating Valve

The Webster RV2002 is a regulating valve with delivery cut-off, designed for precise fuel oil pressure control in oil heating systems. It is part of the RV2000 Series, which combines pressure regulation and shut-off functionality.

🔧 Technical Specifications

• Model: RV2002
• Series: RV2000
• Port Size: 3/8 inch NPT
• Adjustment Pressure Range: 100–330 PSI
• Factory Set Pressure: 100 PSI
• Flow Capacity: 100 GPH (Gallons Per Hour)
• Fuel Compatibility: Suitable for fuel oils #1 through #6

⚙️ Key Features

• Regulating with Cut-Off: Provides both pressure regulation and positive shut-off, enhancing system safety and control.
• Chrome-Plated Piston Valve: Resists corrosion and ensures a clean, sharp shut-off.
• Compact and Durable: Designed for long-term use in commercial and industrial heating systems.
