S-9130 - Henry - 4 - 101.6 - Oil Level Regulators, with Equalization

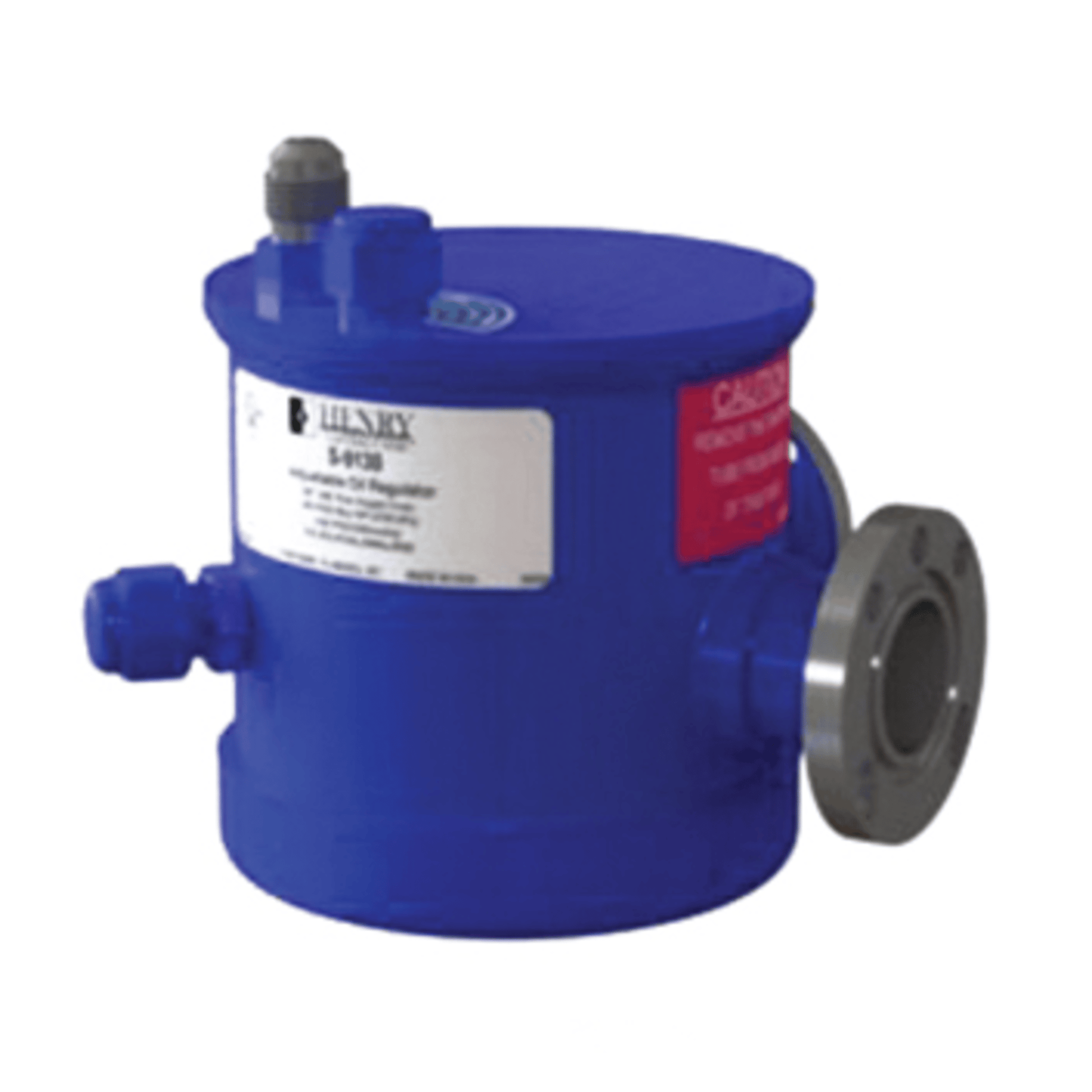

The Henry Technologies S-9130 is a 4" (101.6 mm) mechanical oil level regulator with equalization, designed for use in low-pressure oil management systems on parallel compressor racks. Here's a detailed breakdown of its features and specifications:

🔧 Key Features

• Precision Float Valve Mechanism: Ensures accurate oil level control.
• Adjustable Oil Level: Can be set between 1/4 and 5/8 of the sight glass.
• Universal Mounting Flanges: Compatible with a wide range of compressor models.
• Equalization Ports: For multi-compressor applications.
• In-Service Adjustment: Oil level can be adjusted without shutting down the system.

⚙️ Technical Specifications

• Model: S-9130
• Connection Size: 4" (101.6 mm)
• Max Working Pressure: 450 PSI (31 Bar)
• Pressure Differential Range: 5 to 90 PSI (0.35 to 6.2 Bar)
• Operating Temperature: +32°F to +266°F (0°C to +130°C)
• Certifications: UL, CE, AS2971
• Materials:
  • Shell & Caps: Steel
  • Float Valve: Brass with stainless steel needle
  • Float Ball: Stainless steel
  • Connections: Plated steel

🧪 Fluid Compatibility

• Suitable for HFC and HCFC refrigerants and their associated oils
• Also compatible with non-corrosive industrial fluids (to steel, brass, copper, nylon, synthetic rubber)
