22R220D-5C3 - Webster - Two Stage Pump
22R220D-5C3 - Webster - Two Stage Pump
Ready to Order - Lead Times Vary

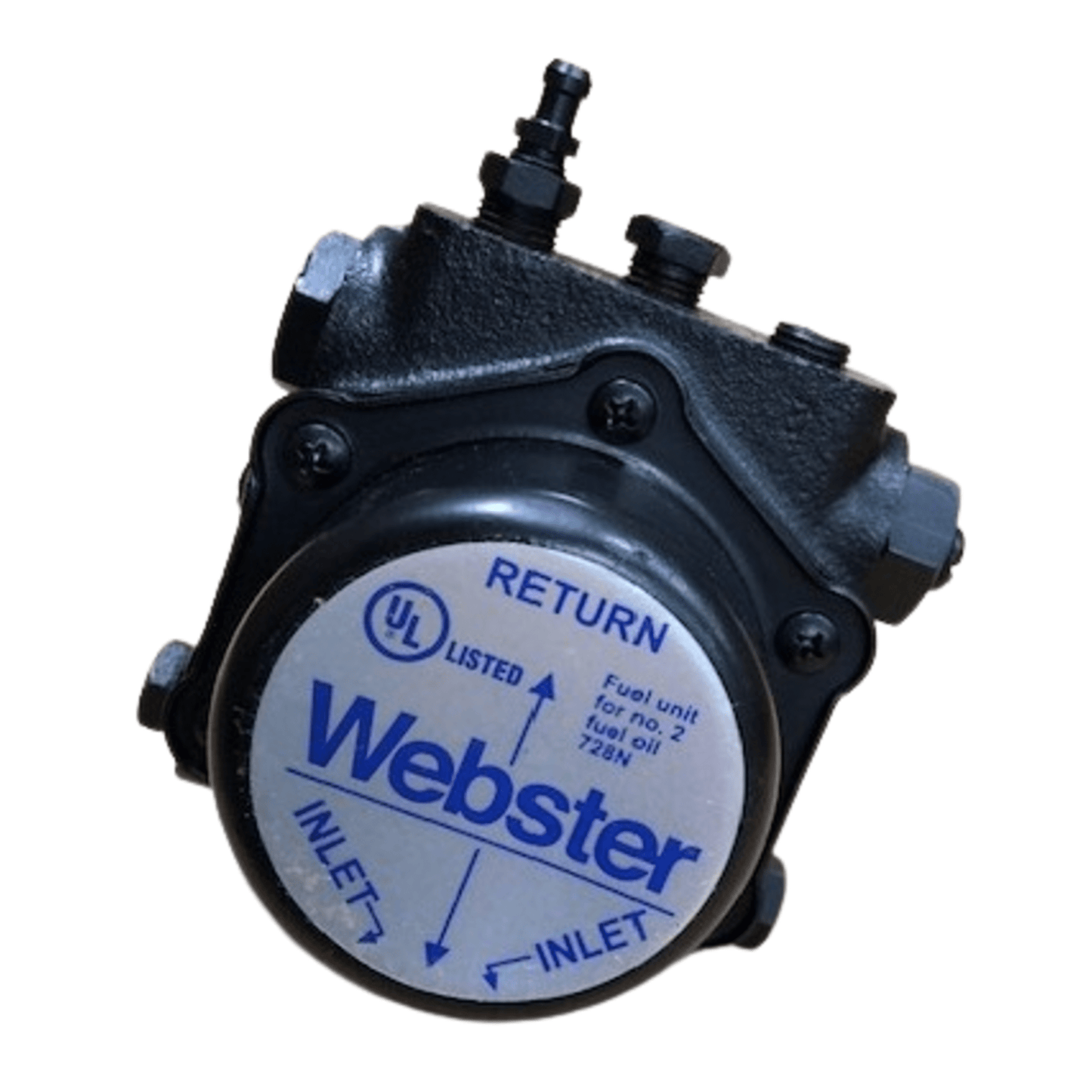

22R220D-5C3 – Webster Two Stage Pump (1 EA)
Product Description
The Webster 22R220D-5C3 Two Stage Pump is a high‑speed R Series fuel oil pump designed for efficient fuel delivery and dependable pressure regulation in commercial and light industrial oil‑fired heating systems. Its two‑stage design improves priming and lift performance, making it well suited for two‑pipe installations and demanding burner applications.
Operating at 3450 RPM, this pump delivers approximately 25 GPH with a rated pressure of 150 PSI, ensuring consistent and stable burner operation. The unit features counter‑clockwise (CCW) rotation from the shaft end, corresponding to a D‑style configuration, which supports specific burner and motor setups where this rotation and nozzle arrangement are required.
The 22R220D‑5C3 incorporates Webster’s self‑cleaning rotary fuel filter, helping reduce maintenance by preventing debris from entering internal components. Double‑lip seals provide superior leak protection and reduced friction, contributing to long service life in continuous‑duty environments. Built with 1/4″ NPTF inlet and outlet connections, this pump integrates easily into existing oil heating systems.
Compatible with #1 and #2 fuel oil, the Webster 22R220D‑5C3 is a reliable choice for HVAC professionals servicing commercial burners, boilers, and high‑duty oil heating equipment.
Key Features
- Two‑stage R Series fuel oil pump
- Approx. 25 GPH fuel delivery
- 3450 RPM operation
- Rated pressure: 150 PSI
- CCW rotation (shaft end), D‑style configuration
- Self‑cleaning rotary fuel filter
- Double‑lip seals for durability and leak protection
- 1/4″ NPTF inlet and outlet connections
- Designed for commercial and light industrial heating systems
