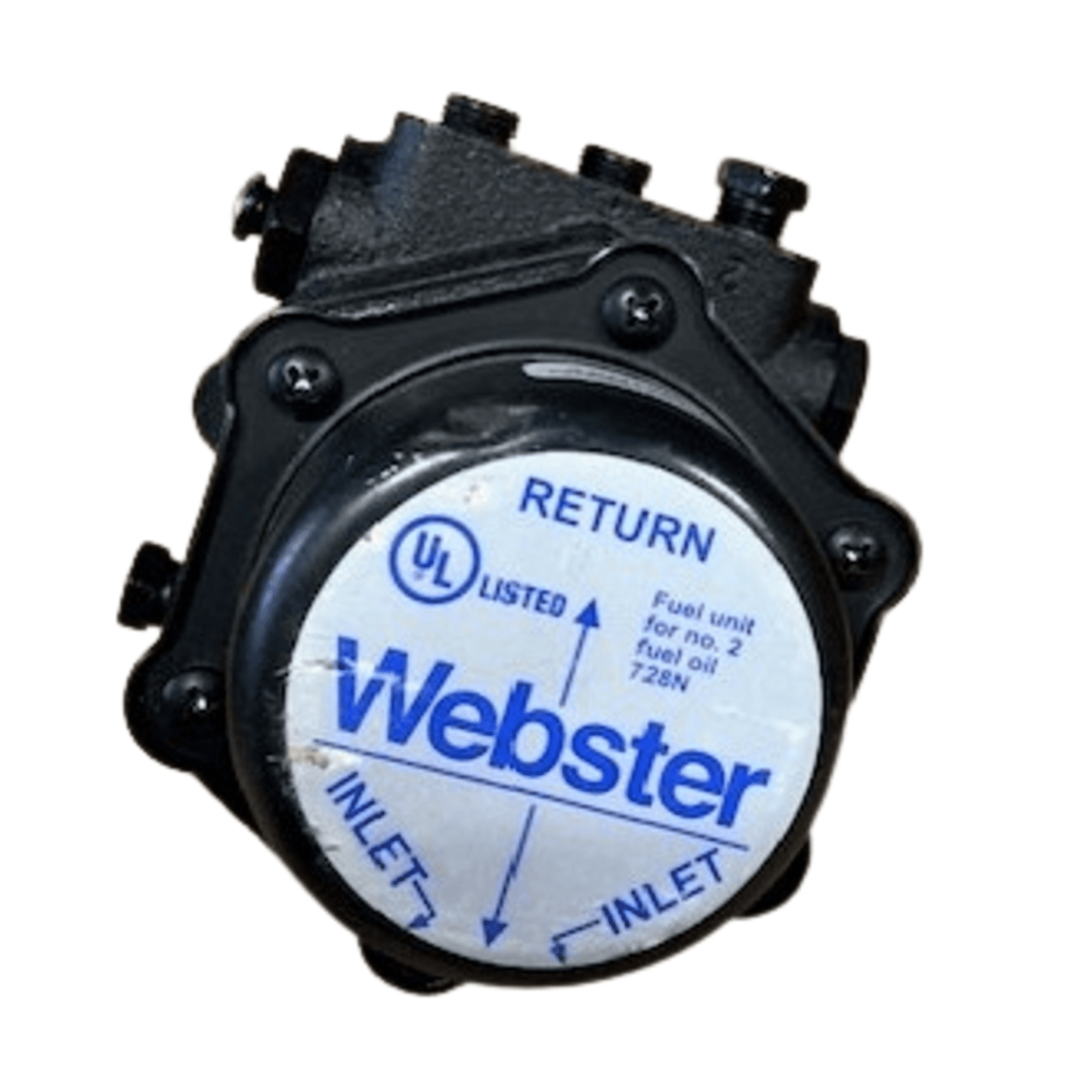

22R221C-5A14 - Webster - Two Stage Pump

22R221C-5A14 - Webster - Two Stage Pump

Ready to Order - Lead Times Vary

22R221C-5A14 – Webster Two Stage Pump (1 EA)

Product Description

The Webster 22R221C-5A14 Two Stage Pump is a high‑speed R Series fuel oil pump engineered for reliable fuel delivery and precise pressure regulation in commercial and light industrial oil‑fired heating systems. Its two‑stage design enhances priming and lift performance, making it ideal for two‑pipe installations and systems with longer fuel runs.
Operating at 3450 RPM, this pump delivers approximately 23 GPH, with a wide pressure operating range of 70–300 PSI, ensuring consistent burner performance across varying system demands. The unit features counter‑clockwise (CCW) rotation from the shaft end with a left‑side nozzle location, corresponding to a C‑style configuration, allowing compatibility with specific burner and motor arrangements.
The 22R221C‑5A14 includes Webster’s self‑cleaning rotary fuel filter, which helps minimize maintenance by preventing contaminants from entering the pump. Double‑lip seals provide superior leak protection and reduced friction, extending service life in continuous‑duty applications. Built with 1/4″ NPTF inlet and outlet connections, this pump integrates easily into existing oil heating systems.
Compatible with #1 and #2 fuel oil, the Webster 22R221C‑5A14 is a dependable choice for HVAC professionals servicing commercial burners, boilers, and high‑duty heating equipment.
Key Features
  • Two‑stage R Series fuel oil pump
  • Approx. 23 GPH fuel delivery
  • 3450 RPM operation
  • Pressure range: 70–300 PSI
  • CCW rotation (shaft end) with left‑side nozzle (C‑style)
  • Self‑cleaning rotary fuel filter
  • Double‑lip seals for enhanced durability
  • 1/4″ NPTF inlet and outlet connections
  • Designed for commercial and light industrial heating systems
