22R322C-5C14 - Webster - Two Stage Pump

22R322C-5C14 - Webster - Two Stage Pump

Ready to Order - Lead Times Vary

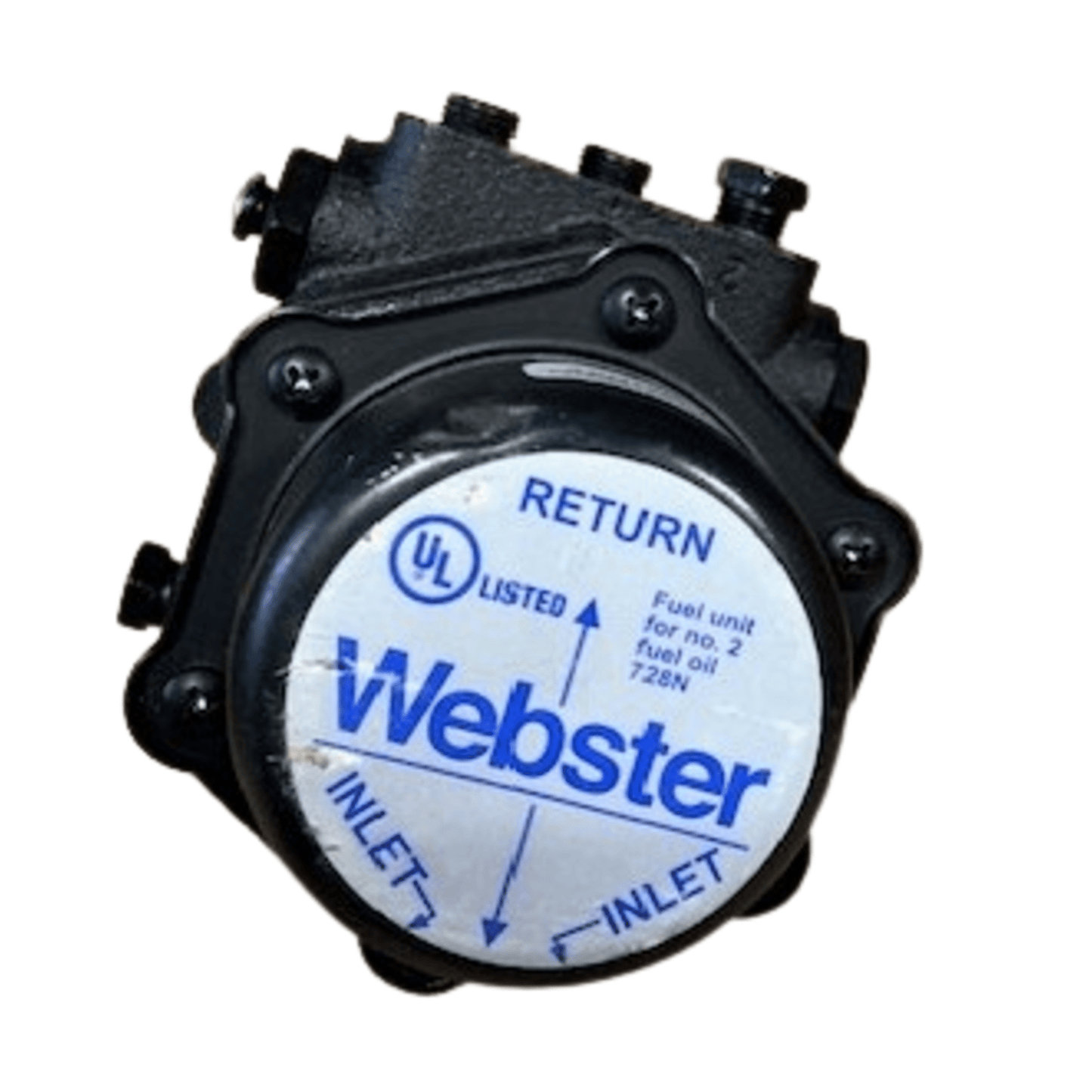

22R322C-5C14 – Webster Two Stage Pump (1 EA)

Product Description

The Webster 22R322C-5C14 Two Stage Pump is a durable, high‑speed R Series fuel oil pump designed for commercial and light industrial oil‑fired heating systems that require dependable fuel delivery and consistent pressure control. Its two‑stage design improves priming and lift capability, making it well suited for two‑pipe installations and longer fuel line runs.
Operating at 3450 RPM, this pump delivers 40 GPH at 100 PSI, with pressure capability up to 300 PSI, ensuring reliable burner performance across a wide operating range. The unit features counter‑clockwise (CCW) rotation from the shaft end with a left‑side nozzle location, allowing compatibility with specific burner and motor configurations.
The 22R322C‑5C14 incorporates Webster’s self‑cleaning rotary fuel filter, which helps reduce maintenance by preventing contaminants from entering the pumping chamber. Double‑lip seals provide superior leak protection and reduced friction, contributing to long service life. Built in a C‑style body with 1/4″ NPTF inlet and outlet connections, this pump integrates easily into existing oil heating systems.
Compatible with #1 and #2 fuel oil, the Webster 22R322C‑5C14 is a trusted choice for HVAC professionals servicing commercial burners, boilers, and high‑duty heating equipment.
Key Features
  • Two‑stage R Series fuel oil pump
  • 40 GPH capacity at 100 PSI
  • 3450 RPM operation
  • Pressure capability up to 300 PSI
  • CCW rotation (shaft end) with left‑side nozzle
  • Self‑cleaning rotary fuel filter
  • Double‑lip seals for enhanced durability
  • 1/4″ NPTF inlet and outlet connections
  • Designed for commercial and light industrial heating systems
