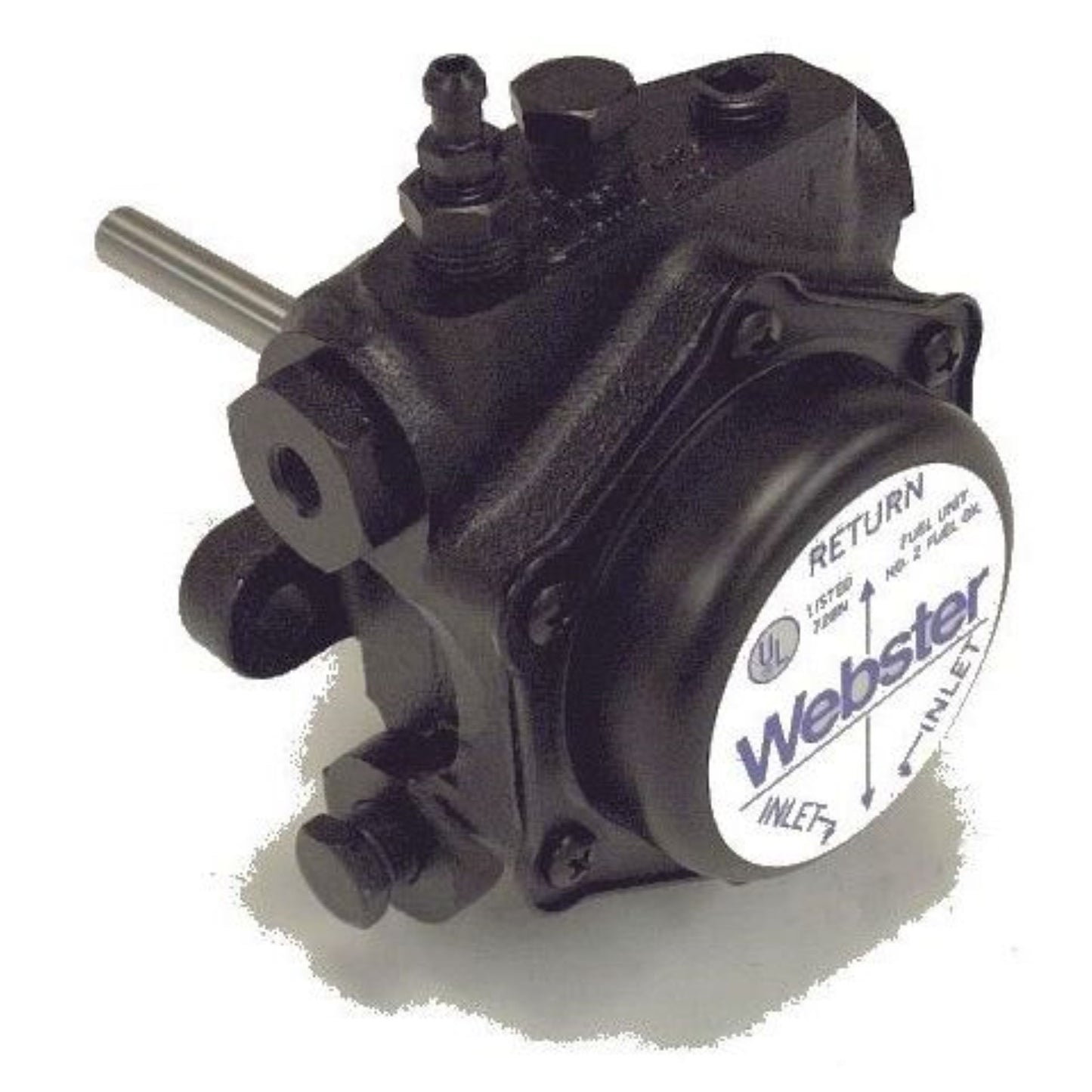

2R626C-5C14 - Webster - Two Stage Pump

2R626C-5C14 - Webster - Two Stage Pump

Ready to Order - Lead Times Vary



The Webster 2R626C‑5C14 Two‑Stage Fuel Pump is a heavy‑duty oil pump from Webster’s proven R Series, designed for high‑capacity oil‑fired burners requiring strong suction and precise pressure control. Operating at 1725 RPM, this two‑stage pump delivers up to 50 GPH at 300 PSI, making it well suited for commercial boilers, furnaces, and industrial heating applications.
Built with a counter‑clockwise rotation and left‑hand nozzle configuration (CCW/L), the 2R626C‑5C14 provides dependable fuel delivery in systems with long oil lines, lift requirements, or challenging piping layouts. The two‑stage design ensures excellent priming capability and consistent pressure under load.
This model features Webster’s R Series Service Saver™ design, including a self‑cleaning rotary filter that reduces maintenance and extends service intervals. Double‑lip shaft seals provide superior leak protection, while durable internal components are engineered for long service life in demanding environments. The pump is rated up to 300 PSI and is designed for use with No. 2 fuel oil and lighter fuels.
Trusted by HVAC professionals, the Webster 2R626C‑5C14 is a reliable solution for high‑output oil‑fired heating systems where performance and durability are critical.

Key Specifications

  • Manufacturer: Webster
  • Model: 2R626C‑5C14
  • Series: R Series
  • Pump Type: Two‑Stage Fuel Pump
  • Speed: 1725 RPM
  • Flow Rate: 50 GPH @ 300 PSI
  • Maximum Pressure: 300 PSI
  • Rotation: Counter‑Clockwise (CCW)
  • Nozzle Location: Left‑Hand
  • Gear Set Capacity: 125
  • Fuel Type: No. 2 fuel oil and lighter
