Suntec Industries Inc

SPM-15-1 - Webster - SPM-15-1 Pump & Motor Assembly

SPM-15-1 - Webster - SPM-15-1 Pump & Motor Assembly

Ready to Order - Lead Times Vary

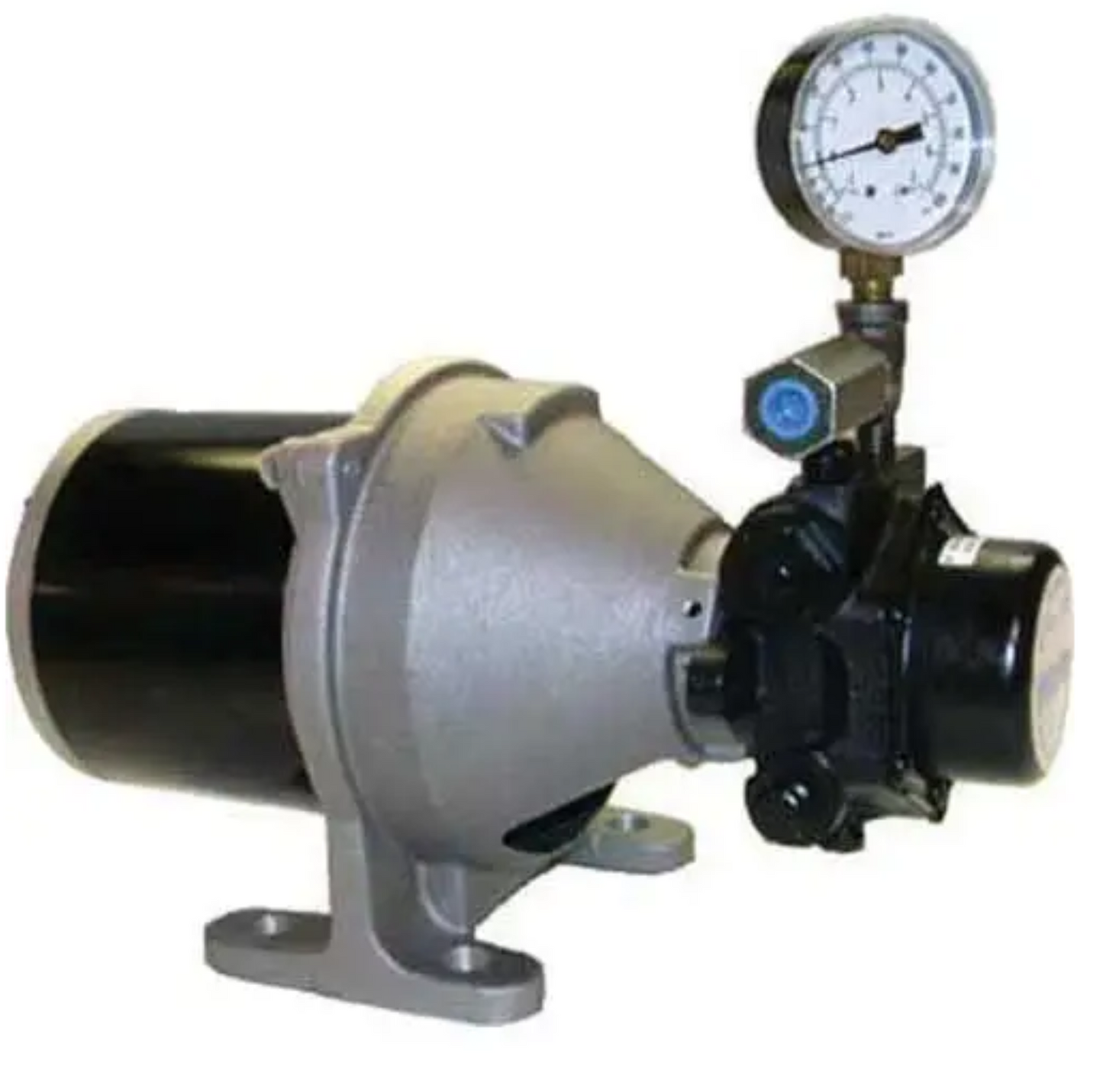

The Webster SPM‑15‑1 Pump & Motor Assembly is a compact, factory‑assembled fuel oil supply unit designed for reliable delivery from a central storage tank to remote oil‑fired burners, furnaces, or auxiliary day tanks. As part of Webster’s trusted SPM Series, this assembly is ideal for residential and light commercial heating systems requiring dependable, continuous fuel flow.
The SPM‑15‑1 combines a direct‑coupled 1/6 HP motor with a two‑stage Webster R‑Series fuel pump, delivering a total firing rate of 15 GPH. Operating at 1725 RPM on 115 volts, the motor is built for continuous duty. An integral check valve maintains prime for fast startups, while the combination vacuum/pressure gauge (30" Hg vacuum to 100 PSI) allows for quick system diagnostics.
Designed for challenging installations, the SPM‑15‑1 can lift fuel oil up to 15 feet and supply systems located up to 200 feet above the pump. The unit features rotary self‑cleaning filtration, double‑lip shaft seals, and a four‑bolt foot mount for secure installation and long service life. Fully assembled from the factory, the Webster SPM‑15‑1 provides HVAC professionals with a ready‑to‑install solution for centralized oil supply applications.

Key Specifications

  • Manufacturer: Webster
  • Model: SPM‑15‑1
  • Series: SPM
  • Type: Pump & Motor Assembly
  • Flow Rate: 15 GPH
  • Motor: 1/6 HP, 1725 RPM
  • Voltage: 115V, Single Phase
  • Pump Type: Two‑Stage (Webster R‑Series)
  • Maximum Pressure: Up to 80 PSI
  • Maximum Lift: 15 ft suction / 200 ft head
  • Mounting: Four‑Bolt Foot Mount
  • Includes: Pump, motor, integral check valve, vacuum/pressure gauge
