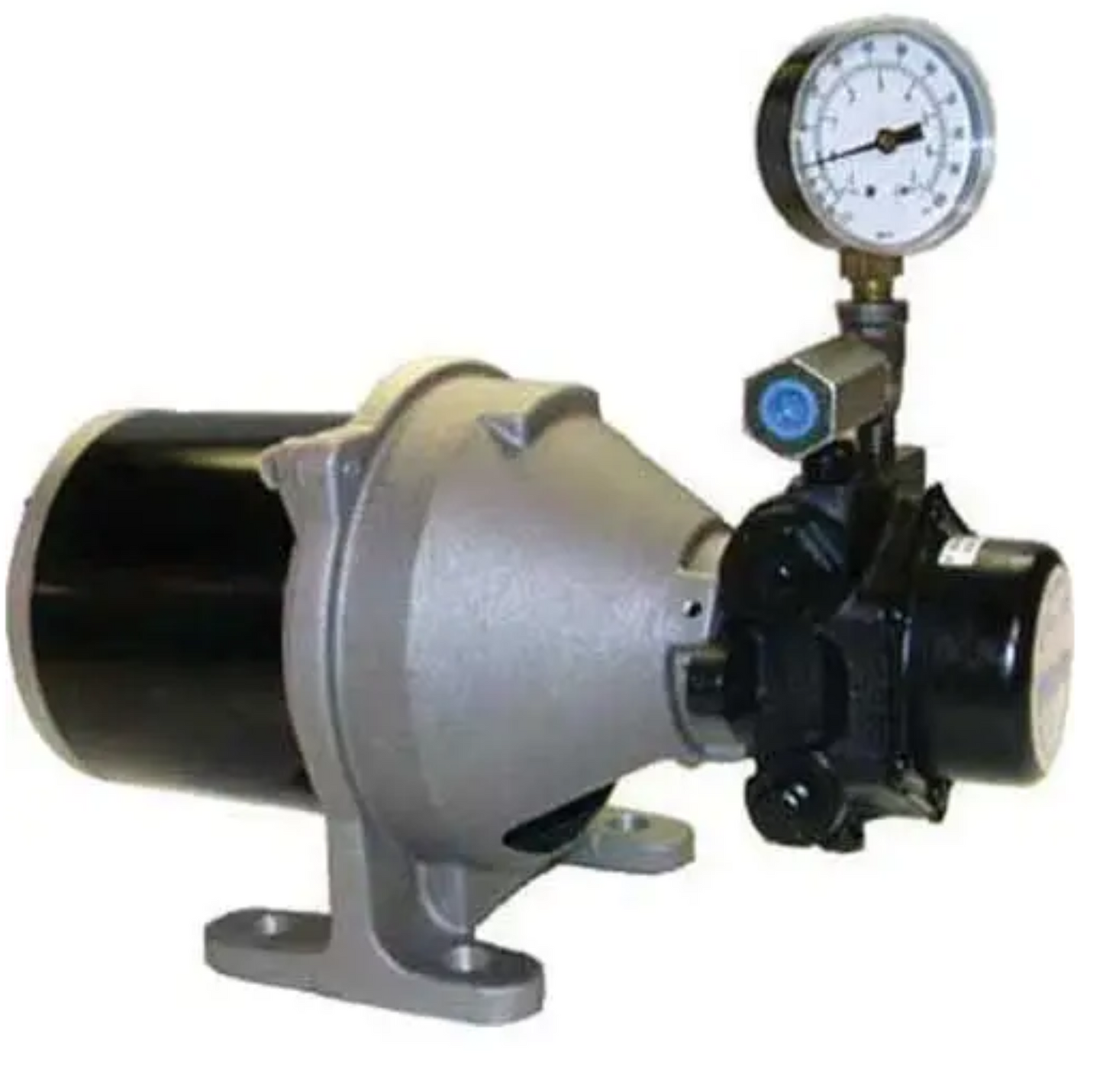

SPM-30-1 - Webster - SPM-30-1 Pump & Motor Assembly

The Webster SPM‑30‑1 Pump & Motor Assembly is a complete fuel oil supply unit designed to deliver reliable, continuous oil flow from a central storage tank to one or more oil‑fired burners, overhead furnaces, or day tanks. Part of Webster’s proven SPM Series, this assembly is ideal for residential, commercial, and light industrial heating systems requiring consistent fuel delivery.

The SPM‑30‑1 features a direct‑coupled motor and two‑stage Webster R‑Series fuel pump, providing a total firing rate of 30 GPH. It is powered by a 115‑volt, 1/4 HP motor operating at 1725 RPM, engineered for continuous duty operation. The unit includes an integral check valve to maintain prime for fast startups, along with a combination vacuum/pressure gauge for easy system monitoring and diagnostics.

Designed for demanding installations, the SPM‑30‑1 is capable of lifting fuel oil up to 15 feet and supplying systems located up to 200 feet above the pump. A four‑bolt foot mount ensures secure installation, while factory assembly simplifies setup and long‑term service. This pump and motor assembly is a dependable solution for HVAC professionals who need a compact, ready‑to‑install oil supply pump with proven performance.
