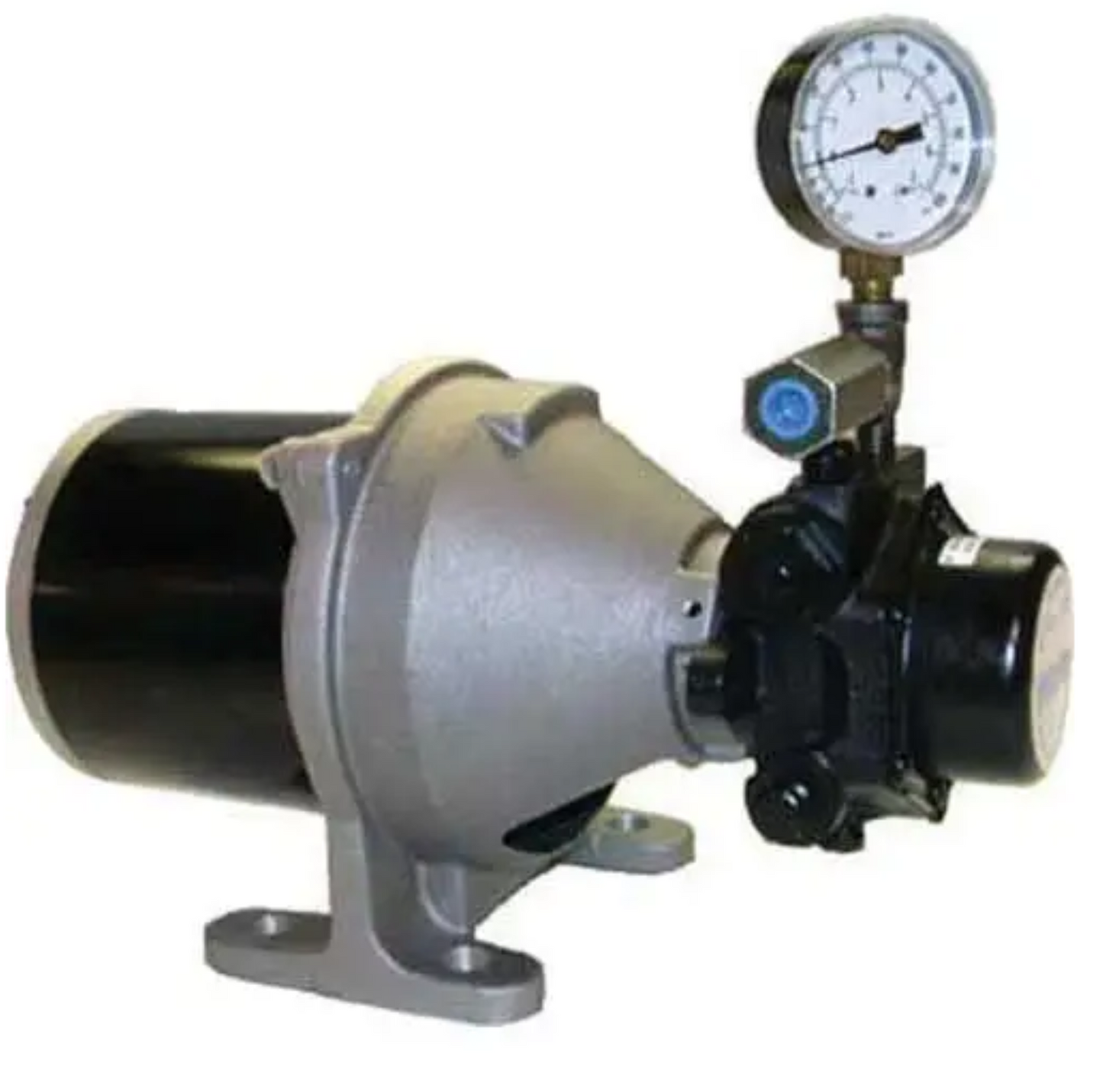

SPM-65-1 - Webster - SPM-65-1 Pump & Motor Assembly

The Webster SPM‑65‑1 Pump & Motor Assembly is a complete fuel oil supply unit designed to deliver dependable, continuous oil flow from a central storage tank to one or more burners, overhead furnaces, or day tanks. Part of Webster’s proven SPM Series, this assembly is built for residential, commercial, and light industrial heating applications where reliable fuel delivery is essential.

The SPM‑65‑1 features a direct‑coupled motor and two‑stage Webster R‑Series fuel pump, delivering a total firing rate of 65 GPH. Powered by a 115‑volt, 1/3 HP motor running at 1725 RPM, the unit is designed for continuous duty operation. An integral check valve helps maintain prime for quick starts, while the combination vacuum/pressure gauge allows easy system monitoring.

This pump and motor assembly is capable of lifting oil up to 15 feet and supplying fuel to systems located 200 feet or more above the pump, making it ideal for multi‑burner or long‑run applications. The four‑bolt foot mount ensures secure installation, and the unit is factory‑assembled for simplified setup and dependable performance.

The Webster SPM‑65‑1 is a trusted solution for HVAC professionals who need a complete, ready‑to‑install oil supply pump with proven durability and consistent output.
